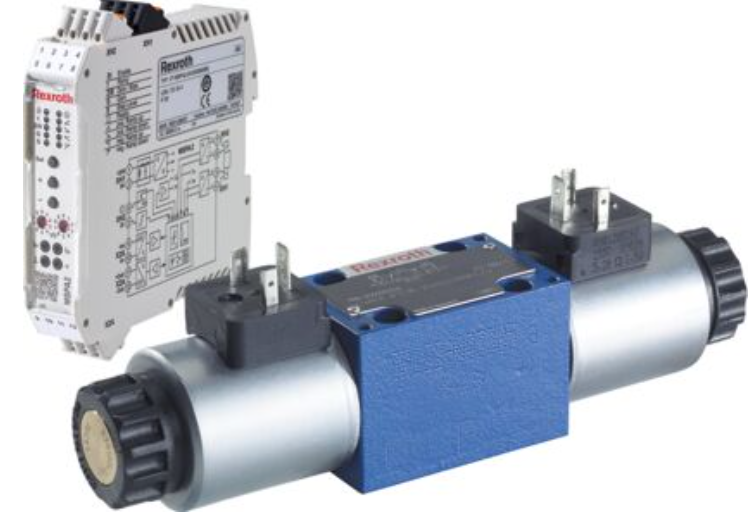

PROPORTIONAL DIRECTIONAL VALVE 4WRA6EA30-2X/G24K4/V R900954055
Size 6, Symbol EA, Electrical with external electronics. Industrial hydraulic valve in a high performance range, reliable control of oil flow direction according to hydraulic symbol. Spool valve. Direct actuated
| Product attributes | |
| Connection diagram | ISO 4401-03-02-0-05 |
| Product family | 4WRA.6,10 |
| Operating pressure, max. [bar] | 315 |
| Max. flow [l/min] | 42 |
| Spool symbol | Symbol EA |
| Type of connection | Subplate mounting |
| Nominal flow [l/min] | 26 |
| Size | 6 |
| Type of actuation | Electrical with external electronics |
| Number of ports | 4 |
| Number of switching positions | 2 |
| Supply voltage | 24 VDC |
| Electrical connector | Connector, 3-pole (2 + PE) |
| Electrical connection description | Connector 3-pole (2 + PE) according to EN 175301-803 |
| Hydraulic fluid | HEES HEPG HETG HFDR HFDU HL HLP HLPD HVLP HVLPD |
| Seals | FKM |
| Weight [kg] | 1.47 |
