PETOL-TITAN Chain Tongs

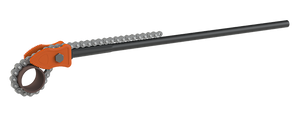

PETOL™-TITAN™ Chain Tongs Description
The PETOL™-TITAN™ Chain Tongs were designed for making up and breaking out pipe and other tubular products by hand. They will work any diameter above 1/8 inch depending upon the tong and chain length selected.
The tongs are adjusted by pulling the chain tight around a workpiece and hooking the nearest chain pin into the ears of the jaw.
The Chain Tongs have the following features:
A high strength, heat treated alloy chain for rugged, dependable service.
Drop-forged jaws, properly hardened to withstand severe service.
High strength alloy steels used throughout for long life with the toughest jobs
| PART NO. | PIPE SIZE | GRIPPING WIDTH | TONG LENGTH | WEIGHT |
|---|---|---|---|---|
| C11-P | 1/8" - 1-1/2" | 1.76" | 20" | 6 lbs. |
| C12-P | 1/4" - 2-1/2" | 2.25" | 27" | 10 lbs. |
| C13-P | 3/4" - 4" | 2.67" | 37" | 20 lbs. |
| C135-P | 1" - 6" | 2.89" | 45" | 27 lbs. |
| C14-P | 1-1/2" - 8" | 3.09" | 51" | 31 lbs. |
| C15-P | 2" - 12" | 3.35" | 65" | 56 lbs. |
| C16-P | 4" - 18" | 4.63" | 87" | 147 lbs. |
