PETOL™ U1344 HYDRA-TORK™ Description

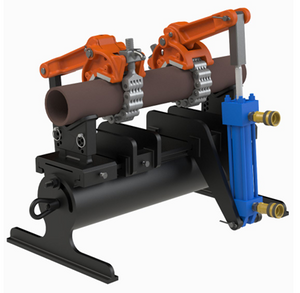

The U1344 PETOL™ HYDRA-TORK™ unit was designed for making up and breaking out downhole tools. It is rated for operation on 1” to 6” diameters with a maximum working load of 5,000 ft-lbs. The unit may be operated in any position (horizontal or inclined) and is totally portable.

The PETOL Drill Pipe Tongs are adjusted to the different diameters within their range by adjusting the chain screw nut for fine adjustment and by adding or removing sections of chain for the coarse adjustment.

The U1344 also offers the following features:
The tong cylinder and backup tongs are mounted on a track for adjusting and switching from make up to break out.

Adjustable vee-saddles mounted on the hydra-tork base for support. The vee-saddles are also mounted on tracks for easy adjustment.

The unit can be operated with any commercially available hydraulic power unit capable of delivering 5000 psi pressure
