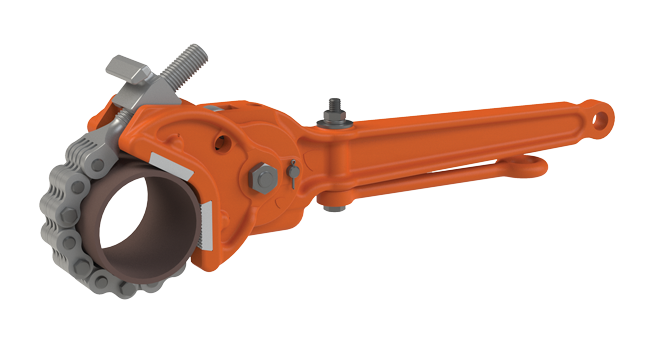

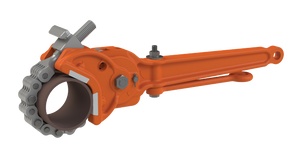

DA2344 PETOL™ Drill Pipe Tong Description

The PETOL™ Drill Pipe Tongs were designed for making up and breaking out drill pipe, and tubular products. The DA2344 will work diameters from 2-1/8 inches to 5 inches and up to 13,800 foot-pounds of torque depending upon diameter and handle configuration.

The tongs are adjusted by exchanging chain sections and adjusting a chain screw nut to work the various diameters.

The Drill Pipe Tongs have the following features:
A high strength, heat treated alloy chain for rugged, dependable service.
High strength alloy steels used throughout for long life with the toughest jobs.
A hanger attached to the tong handle to suspend the tong during operation when used on vertical pipe applications.
A chain screw and nut to provide for fine adjustment of the chain.
Loop and clevis handle ends in various lengths for almost any application
