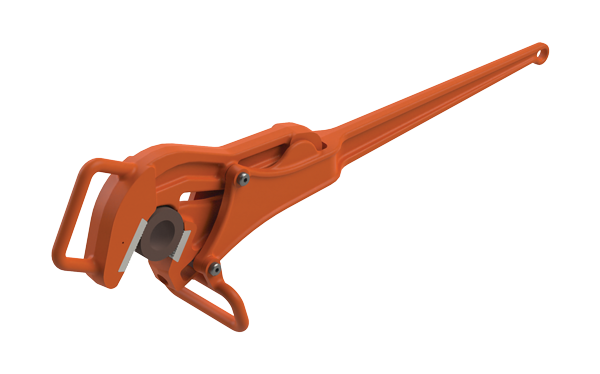

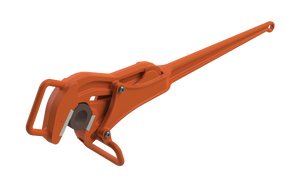

PETOL™ SlimGrip Tong Description

The PETOL™ SlimGrip Tongs were designed for making up and breaking out casing, drill pipe, down hole tools, and other tubular products with restricted gripping widths. The PETOL SlimGrip Tongs have the following specifications:

Model: SLG10
Diameter Range: 1 – 2 inches
Working Load: 1500 ft-lbs
Torque Arm Length: 18 1/4 - 18 7/8 inches
Gripping Width: 1 – 3/16 inches
Maximum Line Pull: 950 lbs

Model: SLG13
Diameter Range: 2-3/8 - 4 inches
Working Load: 5000 ft-lbs
Torque Arm Length: 32 - 34 inches
Gripping Width: 1 – 3/4 inches
Maximum Line Pull: 1760 lbs

Model: SLG15
Diameter Range: 3 3/4 - 6 1/2 inches
Working Load: 7500 ft-lbs
Torque Arm Length: 41 – 42 3/4 inches
Gripping Width: 1 – 1/4 inches
Maximum Line Pull: 2100 lbs
