Benefits:
Special designed to protect from power disturbances
High Active material utilization for high energy density
Long life grid technology
100% Maintenance free
Compact and easy for installation
Fully compatible dimensions to the industry

Recommended for:
UPS applications
High Active material utilization for high energy density

Specifications
Battery Type

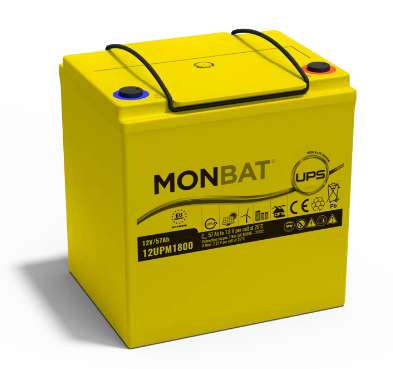

12UPM1800

Number of Cells
6 cells

Rated Capacity
57Ah 10 h rate to 1.80 Vpc at 25 °C

Internal Resistance
8 mOhm

Short Circuit Current
1580 A

Float Charge Voltage
2.27 V per cell at 25 °C

Storage Temperatures:
-10 °C to +40 °C

Operating Temperature:
-20 °C to +60 °C

Storability without recharging
Up to 6 months at 20°C

Self discharge:
Less than 2.0% per month at 20 °C

Container / lid material:
Shock resistant ABS FR; flammability class UL94 V0

Terminal type:
Brass; Female; M6 thread

Terminal torque:
7 Nm

Length
215 mm

Width
173 mm

Height
220 mm

Weight
22 kg
