Benefits:
Extended cycle life achieved through innovative Carbon technology
Excellent deep cycling performance
High Active material utilization for high energy density
Active material additives for faster capacity recovery
Minimized total cost of ownership
Wide operating temperature range: -20°C to +60°C

Recommended for:
Active material additives for faster capacity recovery
Excellent deep cycling performance

Specifications
Battery Type

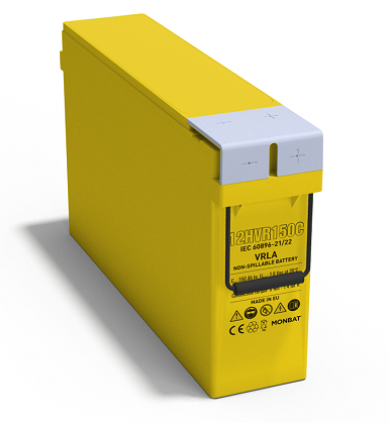

12HVR150C

Number of Cells
6 cells

Rated Capacity
150 Ah (10 h rate to 1.80 Vpc at 20 °C)

Internal Resistance
4.3 mOhm

Short Circuit Current
2950 A

Float Charge Voltage
2.27 VpC at 20 °C

Storage Temperatures
-20 °C to +40 °C

Operating Temperature:
-20 °C to +60 °C

Storability without recharging:
Up to 6 months at 20 °C

Self discharge:
Less than 2.0% per month at 20 °C

Container / lid material:
ABS (FR UL94 V0 optional)

Terminal type:
Brass; Female; M8 thread

Terminal torque:
7 Nm

Length
557 mm

Width
125 mm

Height
276 mm

Weight
51 kg
