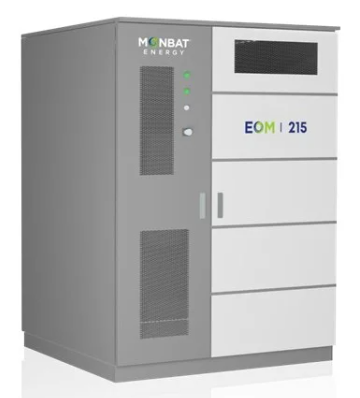

Monbat Energy All-in-one BESS range of systems integrates liquid-cooled Lithium-ion battery with high performance power conversion system, PV DC/DC modules and EMS controller within single housing. The modular design of the systems facilitates scalability with an easy Plug-and-play installation. The integrated EMS with powerful controller enables AI-based algorithms to forecast energy consumption and production, as well as create optimal schedules for the battery storage systems. MONBAT ENERGY EMS supports easy commissioning, individual configuration via apps and stable operation through monitoring and notification functions.

Highlights:
Compact design, all storage units and power units within single housing.
Plug-and-play installation, easy to relocate.
External EMS controller provides more flexibility in applications.
Improved safety characteristics
Specially designed for industrial and grid serving applications

CABINET GENERAL:
Protection Class
General IP54, battery cabinet IP55

Operating Ambient Temp.
-20 C to + 50 C

Ventilation
Fan ventilation

Energy Management
Included

Dimensions (W х L x H)
1.785 x 1.300 x 2.320 mm

Cabinet Weight
< 3.5 ton

Communication
Modbus – RTU/ – TCP for internal and external communication

Fire Safety System
Included

ROWER CONVERSION / AC STAGE
Rated AC Power
187.50 kW (up to 3 PCS modules 62.50 kW each)

Max AC Power
150 kW (< 20 min)

Rated AC Voltage
315 ~ 450 (3 – phase) Vac

Cooling Type
Forced air cooling

Certificates
IEC 62477, IEC 61000-6-2:2019, IEC 61000-6-4:2019

In-Grid Code
VDE-AR-N 4105:2018, VDE-AR-N 4110:2018

BATTERY STORAGE / DC STAGE
Rated Nominal capacity
215 kWh

Rated Useable Capacity
200 kWh at beginning of life (BoL)

Rated DC voltage
800 Vdc

Depth of Discharge
> 97%

Nominal Charge/Discharge Rate
0.5 P / 0.5 P

Chemical System
Lithium-iron phosphate, LFP

Cooling Type
Liquid cooling

Certificates
UN38.3, IEC 62619, UL 1973, UL 9540A, IEC 62477-1 LVD, IEC 61000-6-2/4 EMC
