Benefits:
Precise ratio of active materials for high temperature conditions
Manufactured in highest grade ABS-FR UL94 V-0 containers
Special alloys and active materials resistant to corrosion
Special designed valve technology for less water loss
Wide operating temperature range: -20°C to +60°C
Excellent deep cycling performance

Recommended for:
Designed for harsh environment
Excellent deep cycling performance

Specifications
Battery Type

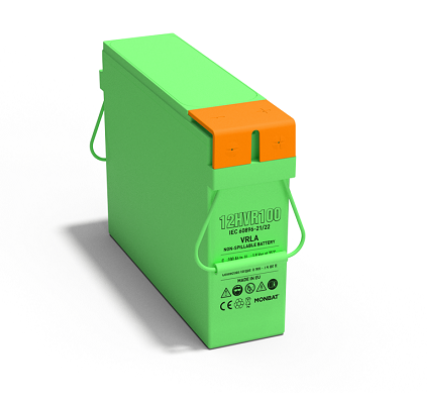

12HVR100

Number of Cells
6 cells

Rated Capacity
103Ah 10 h rate to 1.80 Vpc at 35 °C

Internal Resistance
6.3 mOhm

Short Circuit Current
2100 A

Float Charge Voltage
2.24 VpC at 35 °C

Storage Temperatures
-20 °C to +40 °C

Operating Temperature
-20 °C to +65 °C

Storability without recharging
Up to 6 months at 20 °C

Self discharge
Less than 2.0% per month at 20 °C

Container / lid material
Shock resistant ABS FR; flammability class UL94 V0

Terminal type
Brass; Female; M8 thread

Terminal torque
7 Nm

Length
400 mm

Width
110 mm

Height
286 mm

Weight
33 kg
