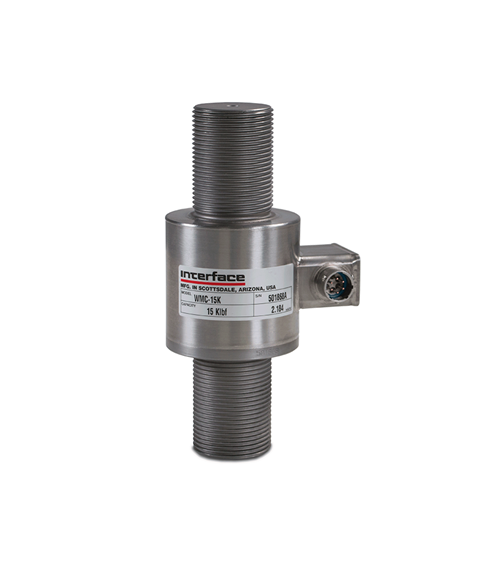

Constructed of stainless steel, environmentally sealed and designed for tension or compression. Capacities range from 15,000 to 200,000 lb.

Full Scale Output:
2.0 mV/V

Bridge Resistance:
350 ohm nominal

Material/Finish:
Stainless steel

Temperature:
Operating: -65 °F to 250 °F (-54 °C to 121 °C)

Safe Overload:
150% full scale

Rated Excitation:
15 VDC Max

Nonlinearity:
15 to 30 k: ± 0.10% full scale
100 k: ± 0.15% full scale
200 k: ± 0.20% full scale

Hysteresis:
± 0.15% full scale

Insulation Resistance:
> 5,000 megohm

Connector Pin Out:
A +Excitation
B +Sense
C –Excitation
D –Sense
E –Signal
F +Signal
