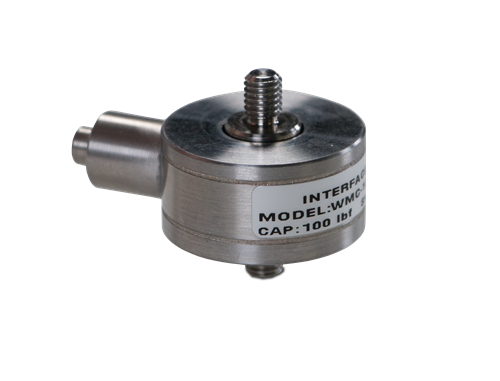

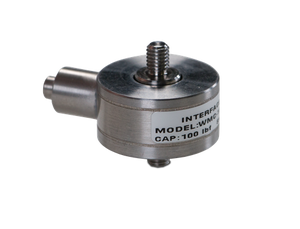

Constructed from stainless steel in capacities ranging from 5 to 10,000 lb. The extremely miniature envelope allows for a wide variety of weighing applications in tension or compression. Features 5 ft of cable.

Full Scale Output:
2.0 mV/V

Bridge Resistance:
350 ohm nominal

Material/Finish:
Stainless steel

Temperature:
Operating: -65 °F to 250 °F (-54 °C to 121 °C)

Safe Overload:
150% full scale

Rated Excitation:
12 VDC

Nonlinearity:
5 to 500 lb: ± 0.15% full scale
1,000 to 10,000 lb: ± 0.20% full scale

Hysteresis:
5 to 500 lb: ± 0.15% full scale
1,000 to 10,000 lb: ± 0.20% full scale

Insulation Resistance:
> 5,000 megohm

Cable Length:
5 ft

Cable Color Code:
Red  +Excitation
Black –Excitation
White +Signal
Green –Signal
