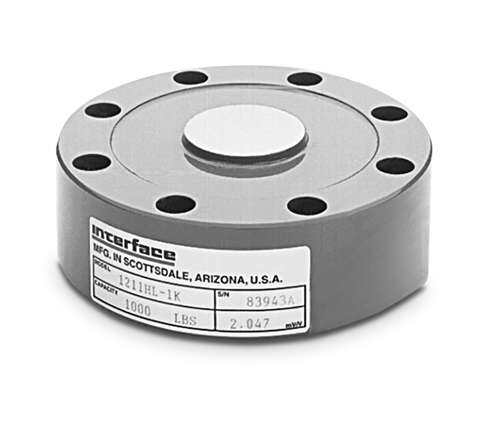

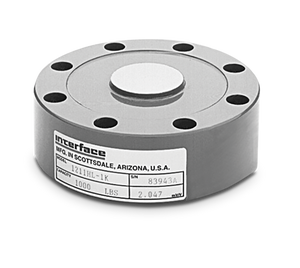

Resistance to extraneous forces allows for high fatigue life, less stringent mounting alignment and lesser possibility of reading errors. This design permits smaller, portable and compact testing machines. Capacities range from 1,000 to 100,000 lb. Complete with 10 ft of load cell cable.

Full Scale Output:
1,000 to 2,000 lb: 2.0 mV/V
5,000 to 100,000 lb: 4.0 mV/V

Bridge Resistance:
350 ohm, nominal

Material/Finish:
1,000 to 2,000 lb: Aluminum
5,000 to 100,000 lb: Alloy steel

Temperature:
Operating:
0 °F to 150 °F (-18 °C to 65 °C)

Seal Type:
Environmentally sealed, IP67

Safe Overload:
150% full scale

Rated Excitation:
5 to 10 VDC (20 V maximum)

Nonlinearity:
0.05% full scale

Hysteresis:
0.02 to 0.04% full scale

Insulation Resistance:
5,000 megohm

Cable Length:
10 ft

Cable Color Code:
Red +Excitation
Black –Excitation
Green +Signal
White –Signal
