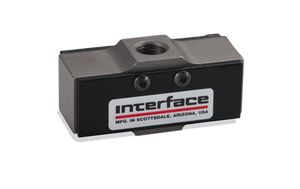

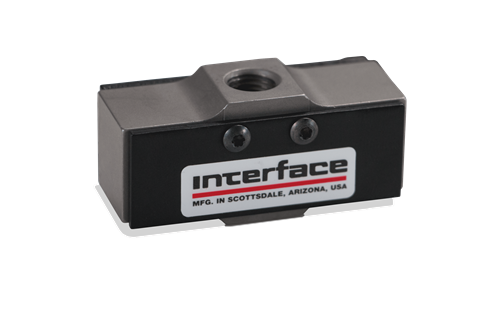

This low-height load cell is designed for tension and compression measurement. It features an anodized aluminum construction for capacities ranging from 5 to 300 lb. It is also available in stainless steel for capacities ranging from 500 to 2,000 lb. Features 5 ft of load cell cable.

Full Scale Output:
2.0 mV/V

Bridge Resistance:
350 ohm nominal

Material/Finish:
5 to 300 lb: Aluminum
500 to 2,000 lb: Stainless steel

Temperature:
Operating: -65°F to 200°F (-54°C to 93°C)

Safe Overload:
5 to 10 lb: 800%
25 to 2,000 lb: 150%

Rated Excitation:
15 VDC maximum

Nonlinearity:
5 to 300 lb: ± 0.05% full scale
500 to 1,000 lb: ± 0.10% full scale
2,000 lb: ± 0.20% full scale

Hysteresis:
5 to 300 lb: ± 0.05% full scale
500 to 1,000 lb: ± 0.10% full scale
2,000 lb: ± 0.20% full scale

Insulation Resistance:
> 5,000 megohm

Cable Length:
5 ft

Cable Color Code:
Red +Excitation
Black –Excitation
White +Signal
Green –Signal
