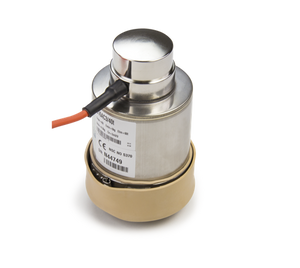

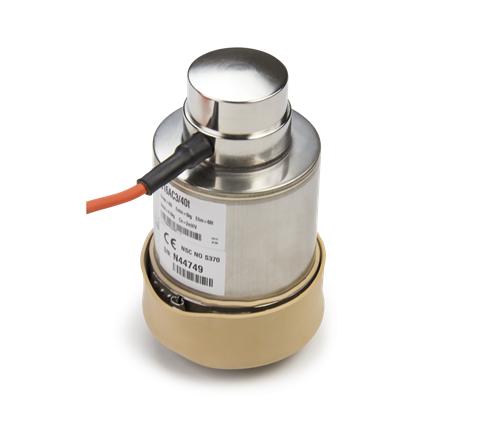

A rocker column load cell specifically designed for high-capacity weighing in the harshest environments. Ideal for truck scale applications, it features all stainless steel construction with IP68 hermetic sealing. Easy to install and maintain. Available in capacities ranging from 20 to 60 t and includes 12 m of load cell cable.

Full Scale Output:
2 mV/V ± 1%

Output Resistance:
706 (± 3.5) ohm

Input Resistance:
700 (± 20) ohm

Material/Finish:
Stainless steel

Temperature:
Compensated: 14 °F to 104 °F (-10 °C to 40 °C)
Operating: 0 °F to 150 °F (-18 °C to 65 °C)

Seal Type:
Hermetically sealed, IP68

Safe Overload:
130% full scale

Rated Excitation:
5 to 15 VDC

Combined Error:
0.03% full scale

Insulation Resistance:
5,000 megohm

Cable Length:
12 m

Cable Diameter:
4.8 mm
Polyurethane jacket

Cable Color Code:
Blue +Excitation
Black –Excitation
White +Signal
Red –Signal
Green +Sense
Grey –Sense
