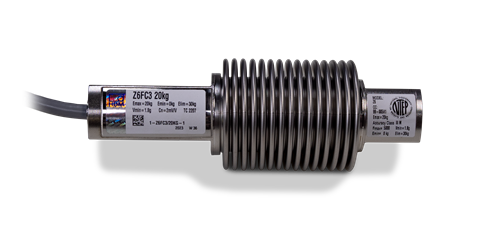

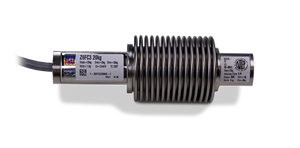

Featuring stainless steel and a welded seal, this bending beam load cell is ideal for harsh or caustic environments and washdown applications. Capacities range from 5 to 200 kg. Complete with 3 m of load cell cable.

Full Scale Output:
2.0 mV/V

Output Resistance:
356 ohm

Input Resistance:
350 to 400 ohm

Material/Finish:
Stainless steel

Temperature:
Operating: 0 °F to 150 °F (-18 °C to 65 °C)

Seal Type:
Welded-seal, IP68

Safe Overload:
150% full scale

Rated Excitation:
5 to 15 VDC

Combined Error:
0.05% full scale

Insulation Resistance:
5,000 megohm

Cable Length:
3 m

Cable Diameter:
4.8 mm PVC jacket

Cable Color Code:
Blue +Excitation
Black –Excitation
White +Signal
Red –Signal
Green +Sense
Grey –Sense
