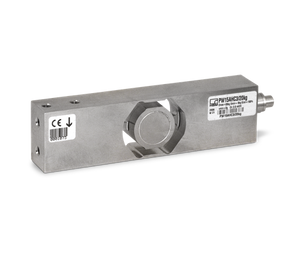

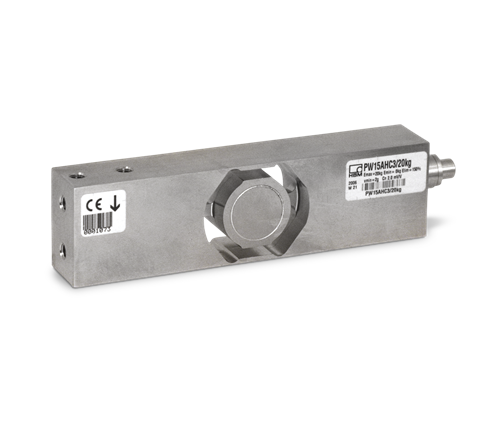

The new standard for hermetically sealed, single point load cells. A unique sealing process guarantees moisture protection from high-pressure jets. IP69K rated and available in 10 to 100 kg capacities. Complete with three meters of load cell cable.

Full Scale Output:
2.0 mV/V

Output Resistance:
350 (± 10) ohm

Input Resistance:
380 (± 15) ohm

Material/Finish:
Stainless steel

Temperature:
Compensated: 14 °F to 104 °F (-10 °C to 40 °C)
Operating: 0 °F to 150 °F (-18 °C to 65 °C)

Seal Type:
Hermetically sealed, IP69K

Safe Overload:
150% full scale

Rated Excitation:
5 to 15 VDC

Combined Error:
0.02% full scale

Insulation Resistance:
1,000 megohm

Cable Length:
3 m

Cable Diameter:
5.38 m PVC jacket

Cable Color Code:
Blue +Excitation
Black –Excitation
White +Signal
Red –Signal
Green +Sense
Grey –Sense
