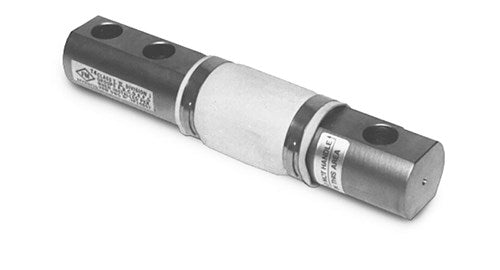

Low-cost bending beam load cell designed for precision force and weight measurement. Features excellent performance and protection against adverse environments, alloy steel sensing elements and low mounting sensitivity. Capacities range from 50 to 1,000 lb. Complete with 10 ft of load cell cable.

Full Scale Output:
2.0 mV/V

Output Resistance:
750 (± 15) ohm

Input Resistance:
810 (± 10) ohm

Material/Finish:
High-alloy steel, nickel plated

Temperature:
Operating: 0 °F to 150 °F (-18 °C to 65 °C)

Seal Type:
Environmentally sealed, IP65

Safe Overload:
150% full scale

Safe Sideload:
50% full scale

Rated Excitation:
5 to 15 VDC

Nonlinearity:
0.03% full scale

Hysteresis:
0.03% full scale

Insulation Resistance:
1,000 megohm

Deflection at Capacity:
50 lb: 0.015 in
100 lb: 0.025 in
200 to 250 lb: 0.030 in
500 lb: 0.020 in
1,000 lb: 0.040 in

Cable Length:
10 ft

Cable Diameter:
0.190 in
Polyurethane jacket

Cable Color Code:
Green +Excitation
Black –Excitation
White +Signal
Red –Signal
Yellow Shield
