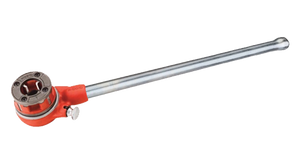

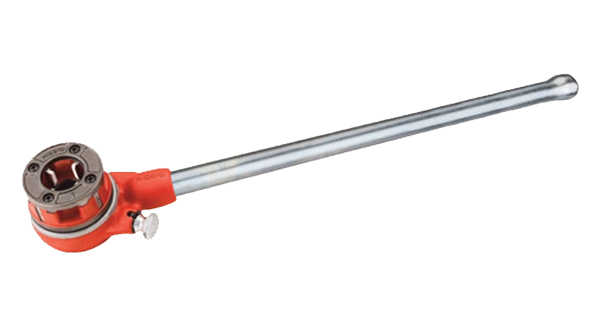

GEARENCH Thread Cutter
- For cutting Modified API Line Pipe Thread on pump valve rods
| PART NO. | DESCRIPTION | FOR ROD O.D. | WEIGHT |
|---|---|---|---|
| COMPLETE DIE HEADS | |||
| ZD375 | 3/8" Die Head Complete w/Hi-Speed Steel Dies | 11//16" | 1-3/4 lbs. |
| ZD500 | 1/2" Die Head Complete w/Hi-Speed Steel Dies | 7/8" | 3 lbs. |
| ZD750 | 3/4" Die Head Complete w/Hi-Speed Steel Dies | 1-1/16" | 2-7/8 lbs. |
| REPLACEMENT DIES | |||
| ZD375-1* | 3/8" Hi-Speed Steel Dies ONLY (Set of 4) | 11/16" | 2-1/2 ozs. |
| ZD500-1* | 1/2" Hi-Speed Steel Dies ONLY (Set of 4) | 7/8" | 5 ozs. |
| ZD750-1* | 3/4" Hi-Speed Steel Dies ONLY (Set of 4) | 1-1/16" | 5 ozs. |
| RATCHET HANDLE | |||
| ZD00-R | Ratchet Handle (22" long) | --- | 3-5/8 lbs. |
