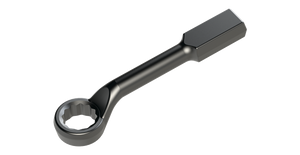

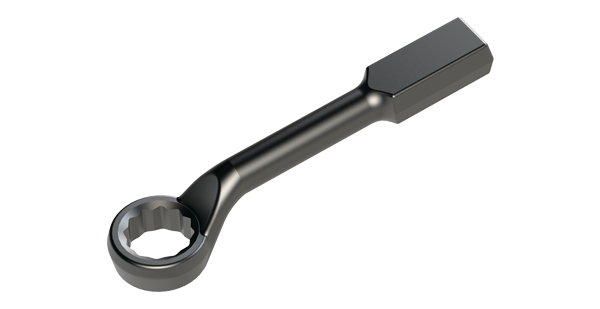

GEARENCH PETOL® Striking Face Box Wrench (12-pt. Offset)
The PETOL® STRIKING FACE BOX WRENCH is a drop-forged alloy steel, surface coated hammer wrench with a 45° offset head and a 12 point opening. The PETOL name, part number and opening size are clearly marked on each wrench.
| PART NO. | OPENING (NUT SIZE) | LENGTH | WEIGHT |
|---|---|---|---|
| SWT20 | 1-1/16" | 10-1/2" | 2-1/4 lbs. |
| SWT21 | 1-1/8" | 10-1/2" | 2-1/4 lbs. |
| SWT22 | 1-1/4" | 11" | 2-3/4 lbs. |
| SWT23 | 1-5/16" | 11" | 2-3/4 lbs. |
| SWT24 | 1-7/16" | 11-3/4" | 3-3/8 lbs. |
| SWT25 | 1-1/2" | 11-3/4" | 3-1/4 lbs. |
| SWT26 | 1-5/8" | 12" | 4 lbs. |
| SWT27 | 1-11/16" | 12" | 4 lbs. |
| SWT28 | 1-3/4" | 12-1/2" | 5-7/8 lbs. |
| SWT29 | 1-13/16" | 12-1/2" | 5-7/8 lbs. |
| SWT30 | 1-7/8" | 12-1/2" | 5-3/4 lbs. |
| SWT31 | 1-15/16" | 13-1/4" | 6-3/4 lbs. |
| SWT32 | 2" | 13-1/4" | 6-1/2 lbs. |
| SWT33 | 2-1/8" | 13-1/2" | 6-3/4 lbs. |
| SWT34 | 2-3/16" | 13-1/2" | 6-5/8 lbs. |
| SWT35 | 2-1/4" | 13-1/2" | 6-5/8 lbs. |
| SWT36 | 2-5/16" | 14" | 9-1/8 lbs. |
| SWT37 | 2-3/8" | 14" | 9 lbs. |
| SWT38 | 2-1/2" | 14-3/4" | 9-1/4 lbs. |
| SWT39 | 2-9/16" | 14-3/4" | 9-1/4 lbs. |
| SWT40 | 2-5/8" | 14-3/4" | 9-1/8 lbs. |
| SWT41 | 2-3/4" | 16" | 13 lbs. |
| SWT42 | 2-7/8" | 16" | 12-5/8 lbs. |
| SWT43 | 2-15/16" | 16" | 12-3/4 lbs. |
| SWT44 | 3" | 16-1/2" | 15-1/4 lbs. |
| SWT45 | 3-1/8" | 16-1/2" | 15-1/8 lbs. |
