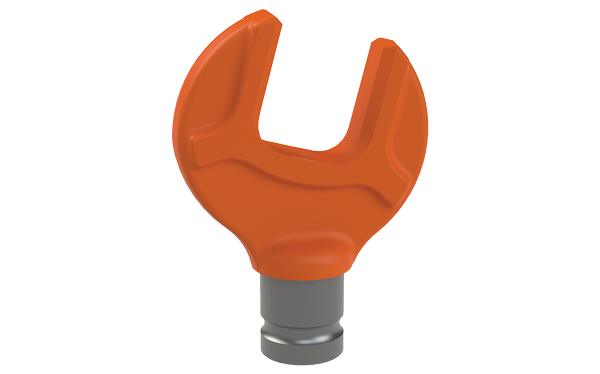

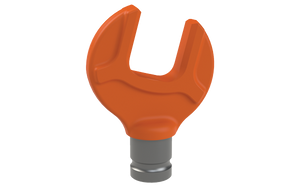

GEARENCH PETOL® Platerench
Designed to fit into the Sliding Socket Plate and Socketrench Handle
Fit on pump flats to secure pump sections during makeup and breakout tasks
| PART NO. | WRENCH SIZE / STEM O.D. | WEIGHT |
|---|---|---|
| ZWP1320 | 13/16" / 1-1/4" | 1-5/8 lbs. |
| ZWP1420 | 7/8" / 1-1/4" | 1-5/8 lbs. |
| ZWP1620 | 1" / 1-1/4" | 1-1/2 lbs. |
| ZWP1720 | 1-1/16" / 1-1/4" | 1-1/2 lbs. |
| ZWP1820 | 1-1/8" / 1-1/4" | 1-1/2 lbs. |
| ZWP1920 | 1-3/16" / 1-1/4" | 1-1/2 lbs. |
| ZWP2020 | 1-1/4" / 1-1/4" | 1-1/2 lbs. |
| ZWP2120 | 1-5/16" / 1-1/4" | 1-1/2 lbs. |
| ZWP2220 | 1-3/8" / 1-1/4" | 1-1/2 lbs. |
| ZWP2420 | 1-1/2" / 1-1/4" | 2-1/4 lbs. |
| ZWP2520 | 1-9/16" / 1-1/4" | 2-1/8 lbs. |
| ZWP2620 | 1-5/8" / 1-1/4" | 2-1/8 lbs. |
| ZWP2720 | 1-11/16" / 1-1/4" | 2-1/8 lbs. |
| ZWP2820 | 1-3/4" / 1-1/4" | 2-1/8 lbs. |
| ZWP3020 | 1-7/8" / 1-1/4" | 2 lbs. |
| ZWP3220 | 2" / 1-1/4" | 2-1/2 lbs. |
| ZWP3520 | 2-3/16" / 1-1/4" | 3-1/8 lbs. |
| ZWP3620 | 2-1/4" / 1-1/4" | 3-1/8 lbs. |
| ZWP3820 | 2-3/8" / 1-1/4" | 4-5/8 lbs. |
| ZWP3224 | 2" / 1-1/2" | 2-3/4 lbs. |
| ZWP3524 | 2-3/16" / 1-1/2" | 5 lbs. |
| ZWP3824 | 2-3/8" / 1-1/2" | 4-5/8 lbs. |
| ZWP4624 | 2-7/8" / 1-1/2" | 4-3/4 lbs. |
