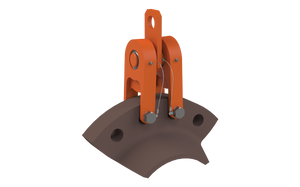

PETOL™ Flange Shackle Description

The FLS3 PETOL™ Flange Shackle hangs from a shackle or a hook, which is attached to a lifting mechanism such as a crane or a hoist. The lifting mechanism moves the Flange Shackle up and down to install and remove ANSI B16.5, ANSI B16.47 Series A, and ANSI B16.47 Series blind and weld neck flanges. Load ratings for the lifting mechanism and shackle or hook components should be greater than or equal to the rated load of the Flange Lifter.

The Flange Shackle has a rated load of 2000 pounds.

The FLS3 offers the following features:

Positively attaches to flange.

No lifting eye required.

For use on flanges up to 3” thickness. No spacers required.

Automatically adjusts to hole spacing.

Alloy steel materials to provide long life.

Load tested and magnetic particle inspected to ensure safety and quality.

Designed to comply with ASME specifications B30.20 and BTH-1.
