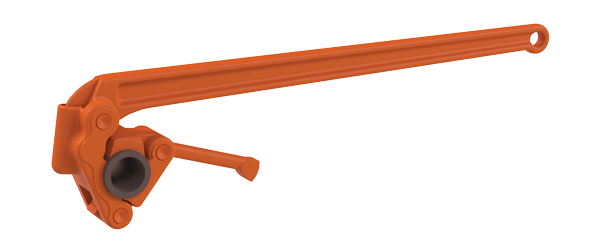

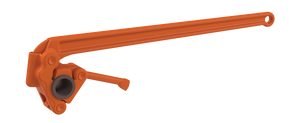

PETOLTM SURGRIPTM Friction Tong Description

The PETOLTM SURGRIPTM Friction Tongs were designed for making up and breaking out downhole pump and other precision components where marking is prohibited.

The tongs utilize multiple jaws that latch into the handle. The jaws are match-bored to a specific diameter. Additional diameters will require additional tongs.

The tongs use a high strength, heat treated alloy steel for rugged, dependable service and high-quality materials throughout for long life with the toughest jobs.

The ZT1 Friction Tong uses a 17-7/8-inch-long alloy steel handle. It has a jaw width of 2.25 inches. The ZT1 will work diameters from 0.625 to 1.250 inches and up to 500 foot-pounds of torque.

The ZT2 Friction Tong uses a 24-1/8-inch-long alloy steel handle. It has a jaw width of 2.50 inches. The ZT2 will work diameters from 1.245 to 1.800 inches and up to 1200 foot-pounds of torque.

The ZT3 Friction Tong uses a 23-inch-long alloy steel handle. It has a jaw width of 2.50 inches. The ZT3 will work diameters from 1.625 to 2.375 inches and up to 2300 foot-pounds of torque.

The ZT4 Friction Tong uses a 31-inch-long alloy steel handle. It has a jaw width of 3.00 inches. The ZT4 will work diameters from 2.327 to 3.062 inches and up to 3000 foot-pounds of torque.

The ZT5 Friction Tong uses a 36-inch-long alloy steel handle. It has a jaw width of 3.50 inches. The ZT5 will work diameters from 2.875 to 4.077 inches and up to 4500 foot-pounds of torque
