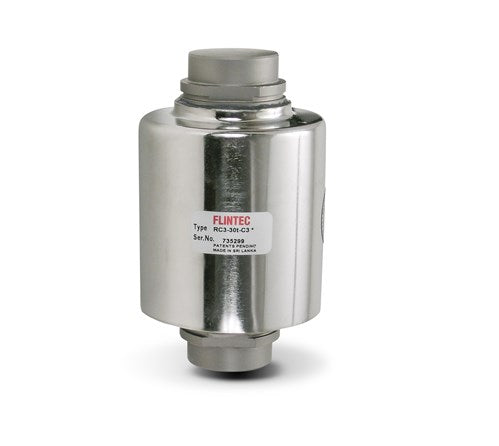

Rocker is built for superior performance and full hermetic design for applications in moist and high-humidity environments. Constructed of stainless steel. Available in capacities from 7.5 to 50 t. Cable lengths are 40 ft for 7.5 to 22.5 t capacities and 18 m for 30 to 40 t capacities.

Full Scale Output:
2.0 mV/V
mV/V/ohm calibration

Output Resistance:
1,000 (± 2) ohm

Input Resistance:
1,150 (± 50) ohm

Material/Finish:
Stainless steel

Temperature:
Compensated:
14 °F to 104 °F (-10 °C to 40 °C)
Operating:
0 °F to 150 °F (-18 °C to 65 °C)

Seal Type:
Hermetically sealed, IP69K

Safe Overload:
200% full scale

Safe Sideload:
200% full scale

Rated Excitation:
5 to 15 VDC

Combined Error:
0.02% full scale

Insulation Resistance:
5,000 megohm

Cable Length:
7.5 to 22.5 t: 40 ft
30 to 50 t: 18 m

Cable Diameter:
0.307 in
Polyurethane jacket

Cable Color Code:
Green +ExcitatIon
Black –Excitation
White +Signal
Red –Signal
Yellow Shield
