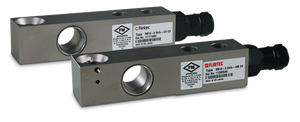

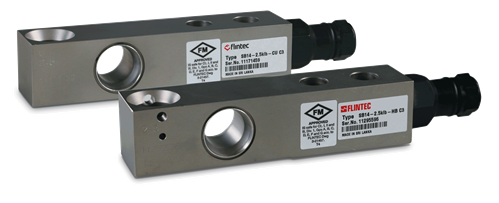

Stainless steel, fully hermetically sealed, single-ended beam suitable for the harshest environments. Capacities range from 500 to 5,000 lb. Complete with 10 ft of load cell cable.

Full Scale Output:
2.0 mV/V
mV/V/ohm calibration

Output Resistance:
1,000 (± 2) ohm

Input Resistance:
1,100 (± 50) ohm

Material/Finish:
Stainless steel

Temperature:
Compensated:
14 °F to 104 °F (-10 °C to 40 °C)
Operating:
0 °F to 150 °F (-18 °C to 65 °C)

Seal Type:
Hermetically sealed, IP69K

Safe Overload:
200% full scale

Safe Sideload:
100% full scale

Rated Excitation:
5 to 15 VDC

Combined Error:
± 0.03% full scale

Insulation Resistance:
5,000 megohm

Cable Length:
10 ft

Cable Diameter:
0.196 in
Polyurethane jacket

Cable Color Code:
Green +Excitation
Black –Excitation
White +Signal
Red –Signal
Yellow Shield
