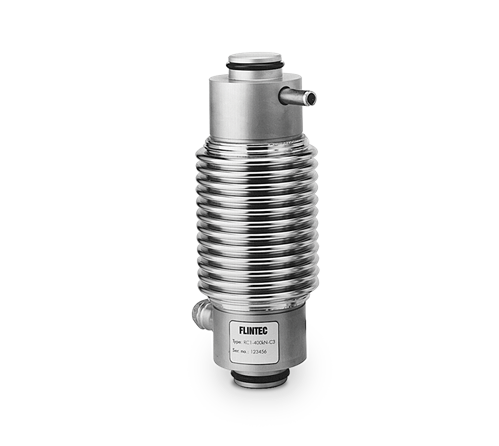

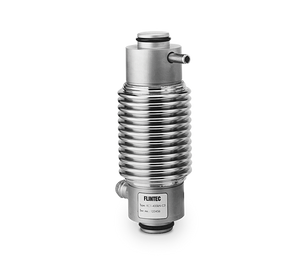

Offers stainless steel and hermetic sealing, making these cells suitable for use in tough industrial environments. Capacities are 25 t, 40 t and 50,000 lb. Cable lengths are 15 ft for the 50,000 lb capacity, 35 ft for the 25 t capacity and 60 ft for the 40 t capacity. Varying lengths provide easy field replacement and load cell repairs.

Full Scale Output:
2.0 mV/V
mV/V/ohm calibration

Output Resistance:
351 (± 1) ohm
50,000 lb: 1,000 (± 2) ohm

Input Resistance:
400 (± 15) ohm
50,000 lb: 1,100 (± 50) ohm

Material/Finish:
Stainless steel

Temperature:
Compensated:
14 °F to 104 °F (-10 °C to 40 °C)
Operating:
0 °F to 150 °F (-18 °C to 65 °C)

Seal Type:
Hermetically sealed, IP68

Safe Overload:
200% full scale

Safe Sideload:
100% full scale

Rated Excitation:
5 to 15 VDC

Combined Error:
± 0.02% full scale

Insulation Resistance:
5,000 megohm

Cable Length:
25 t (250 kN): 35 ft
40 t (400 kN): 60 ft
50,000 lb: 15 ft overbraid

Cable Diameter:
0.196 in
Polyurethane jacket

Cable Color Code:
Green +Excitation
Black –Excitation
White +Signal
Red –Signal
Yellow Shield
