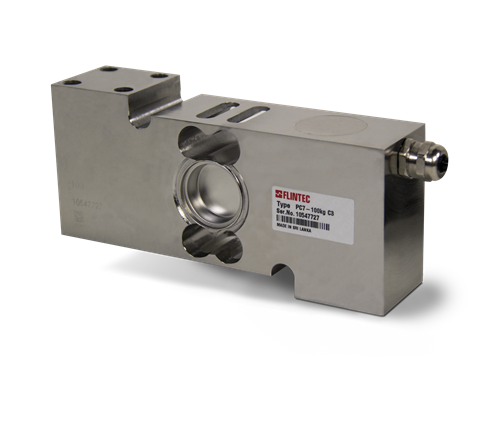

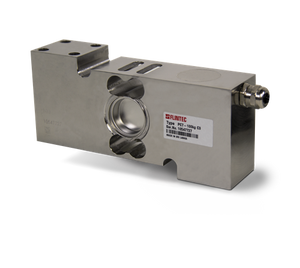

Ideal for washdown applications. Hermetically sealed to IP69K standards, this stainless steel component comes with 3 m of cable and an integrated mounting spacer for easy installation.  Available in capacities ranging from 100 to 500 kg.

Full Scale Output:
2 mV/V ±5%

Output Resistance:
350 (± 10) ohm

Input Resistance:
380 (± 20) ohm

Material/Finish:
Stainless steel construction with
electro-polished finish

Temperature:
Operating:
0 °F to 150 °F (-18 °C to 65 °C)

Seal Type:
Hermetically sealed, IP69K

Safe Overload:
150% full scale

Rated Excitation:
5 to 15 VDC

Insulation Resistance:
5,000 megohm

Cable Length:
3 m

Cable Color Code:
Green +Excitation
Black –Excitation
White +Signal
Red –Signal
Blue +Sense
Brown -Sense
Yellow Shield

Max Platform Size:
600 × 600 mm
