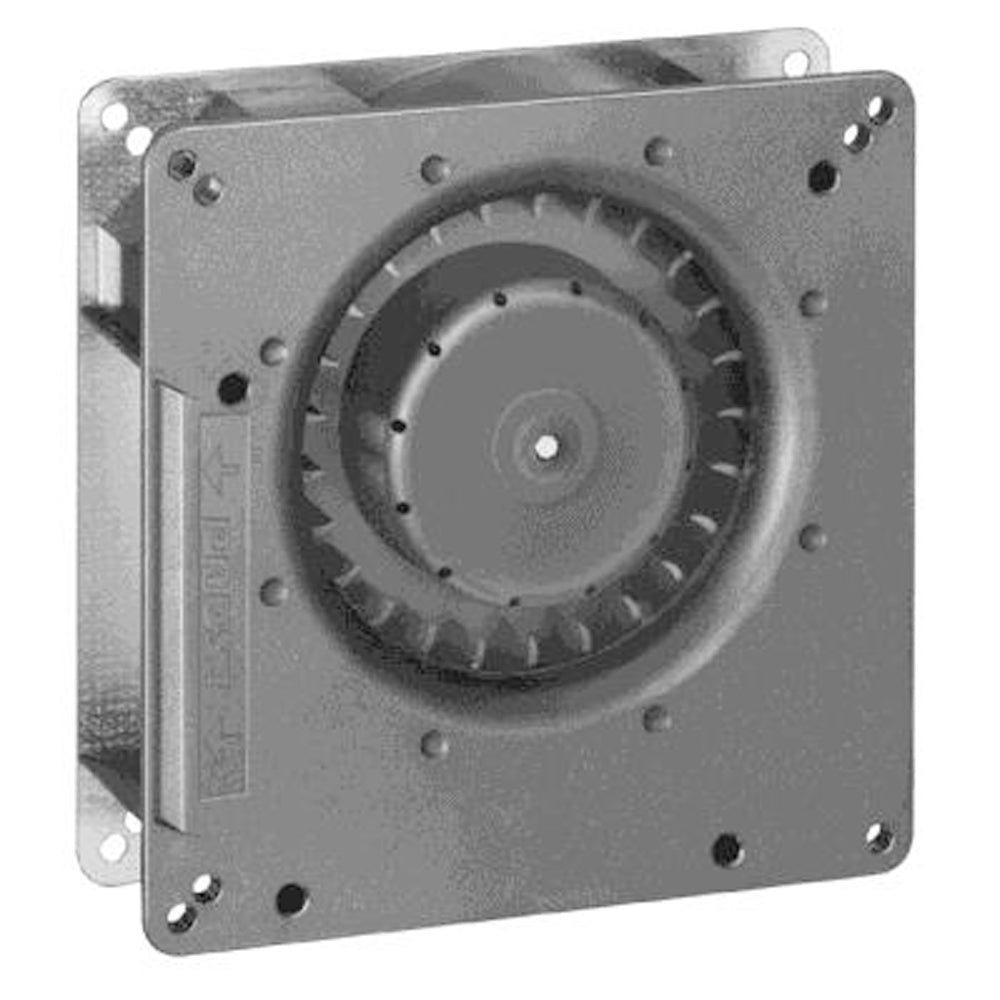

Ebmpapst Centrifugal Fan RG90-18/14N
Compact Fan
Ebm-papst compact fan are available in various designs: axial, centrifugal or diagonal. For each type, ebm-papst offers a wide range of fans, either AC, DC or GreenTech EC, for all voltages and in all standard sizes. They also provide numerous additional functions with pre-installed electronics, and can be intelligently networked with the relevant device logic.
Category：
Centrifugal Fan
Description：
Type: DC centrifugal compact fan
Air output (m³/h): 55
Speed (RPM): 2200
Min. ambient temperature: -30 °C
Impeller material: Glass-fiber reinforced plastic
Housing material: Scroll housing made of glass-fiber reinforced plastic,
housing base made of sheet steel.
Air output (m³/h): 55
Speed (RPM): 2200
Min. ambient temperature: -30 °C
Impeller material: Glass-fiber reinforced plastic
Housing material: Scroll housing made of glass-fiber reinforced plastic,
housing base made of sheet steel.
Nominal data
Brand：
ebmpapst
Part No.：
RG90-18/14N
Fan Type：
Centrifugal Fan
Rated Voltage(V)：
24
Size(mm)：
135*135*38
Max.Air Flow(m³/h)：
55
Max.Pressure(Pa)：
100
Input Power(W)：
6.2
Speed(rpm)：
2200
Noise(db)：
