Ebm-papst compact fan are available in various designs: axial, centrifugal or diagonal. For each type, ebm-papst offers a wide range of fans, either AC, DC or GreenTech EC, for all voltages and in all standard sizes. They also provide numerous additional functions with pre-installed electronics, and can be intelligently networked with the relevant device logic.

Brand：ebmpapst

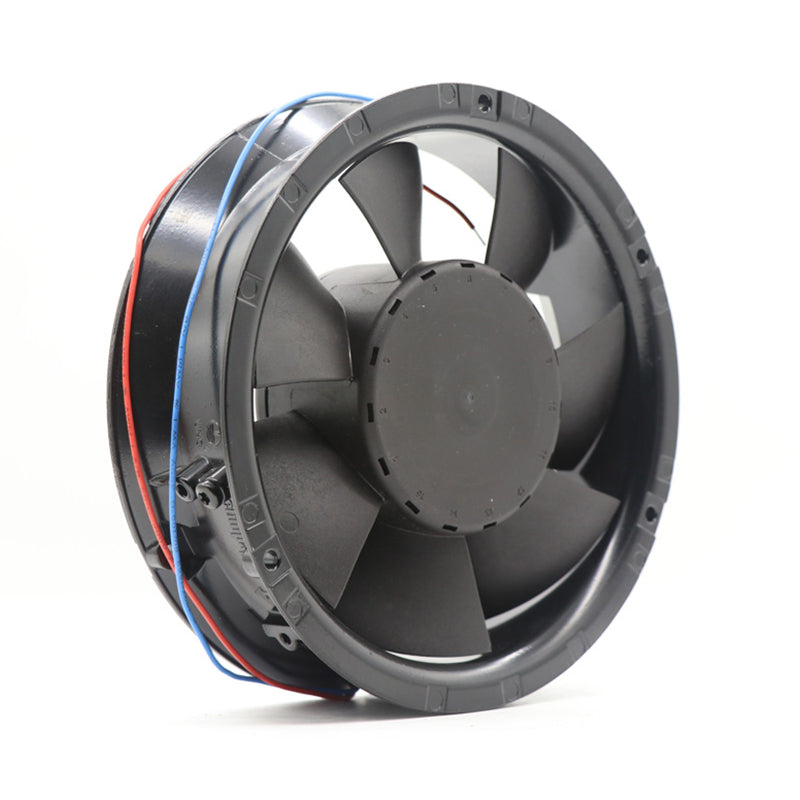

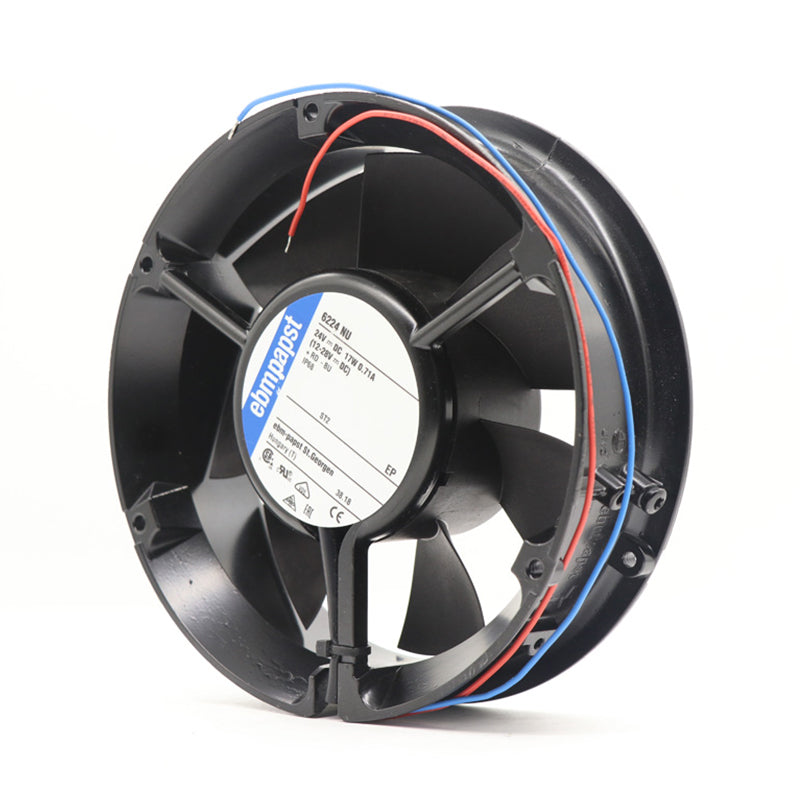

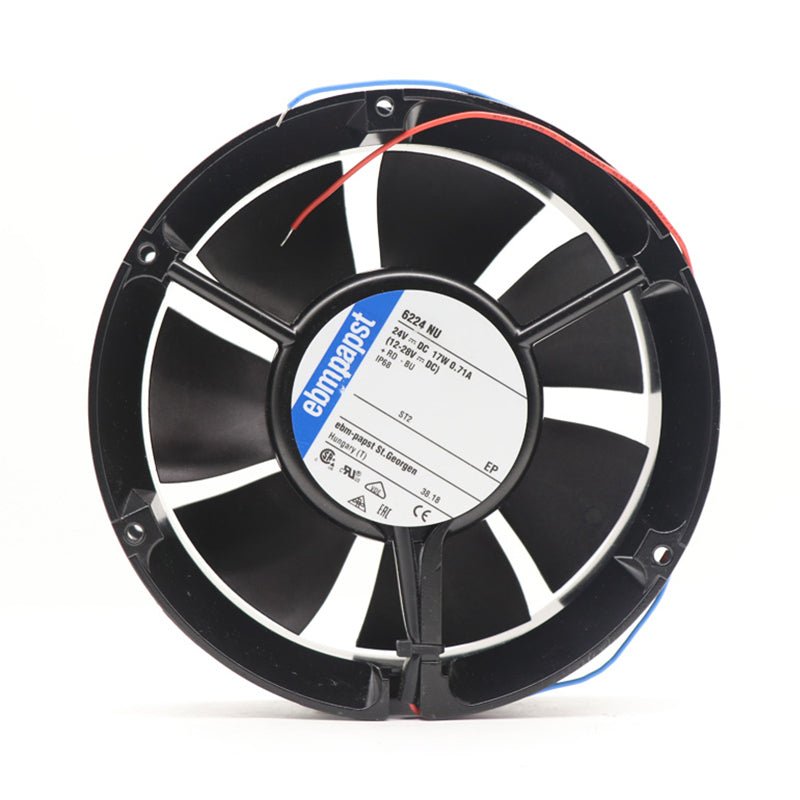

Part No：6224NU
Fan Type：Compact Fan
Rated Voltage(V)：24
Size(mm)：φ172*51
Max.Air Flow(m³/h)：390
Max.Pressure(Pa)：180
Input Power(W)：15.6
Speed(rpm)：3400
