Measurement of differential pressure, velocity and air flow.
Manual or automatic temperature compensation.
Atmospheric pressure compensation.
MAP mapping mode.
Min, Max, Avg and Hold modes.
Recording of point or continuous measurements up to 1 million points.
Casing equipped with magnet compatible with the Multifix accessory!

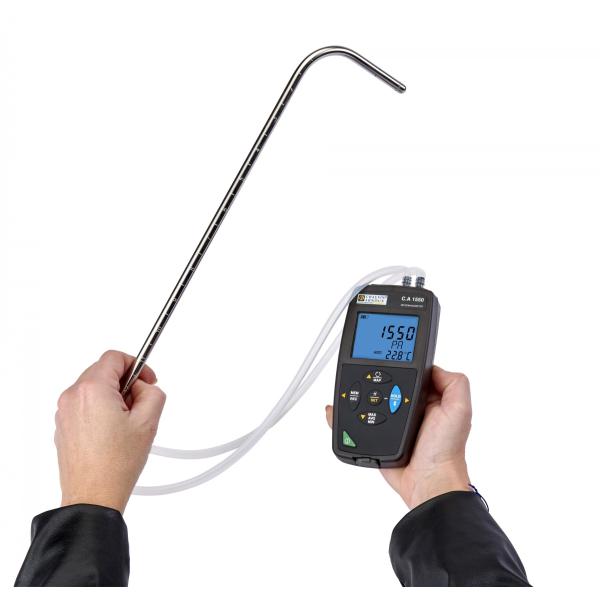

The CA 1550 micromanometer allows you to check the correct functioning of ventilation, air conditioning, etc. systems. and allows you to perform the following measurements:
• Differential pressure measurement for plant verification
• Measurement of the air speed in the duct with Pitot tube
• Pressure measurement at the air extraction vents
• Measurement on depressant devices
• Measurement of fouling in the air handling unit filter
In order to optimize the accuracy of the measurements, the CA 1550 is equipped with the atmospheric pressure or temperature compensation function.

Ergonomic and compact, it can be used in various ways: in the hand, fixed with a magnet to a metal wall, suspended, placed on a surface, with a hooking system compatible with the Multifix accessory.
The USB connection to a PC equipped with the Data Logger Transfer software allows various operations to be performed: data management, configuration, generation of reports in Word format.
Thanks to the Bluetooth connection, the CA 1550 is able to communicate with ANDROID smartphones via the dedicated app.

Technical features
Dynamics: +- 2.450 Pa
Resolution: 0.1Pa
Accuracy: +- 0,5 % full scale +- 1 pt
Air speed: from 2 m/s to 60 m/s
Temperature: manual or automatic with thermocouple socket
Registration up to 1 million points
Min, Max, Hold, AVG


Resolution: 0,1 Pa
