Description:

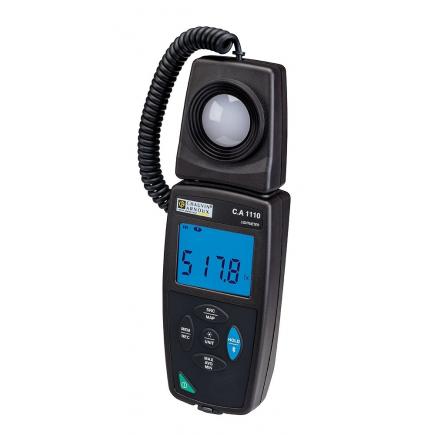

The CA 1110 luxmeter (light meter) measures the illuminance of all light sources (LED, Fluo. etc.) up to 200,000 lux in compliance with Class C of the NF C 42-710 standard.
With the MAP function, you can produce a map of a surface or room in order to check that the illuminance is uniform.

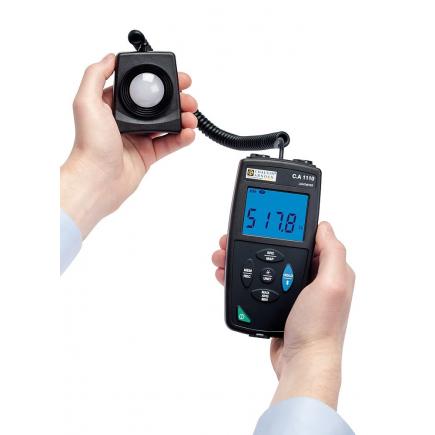

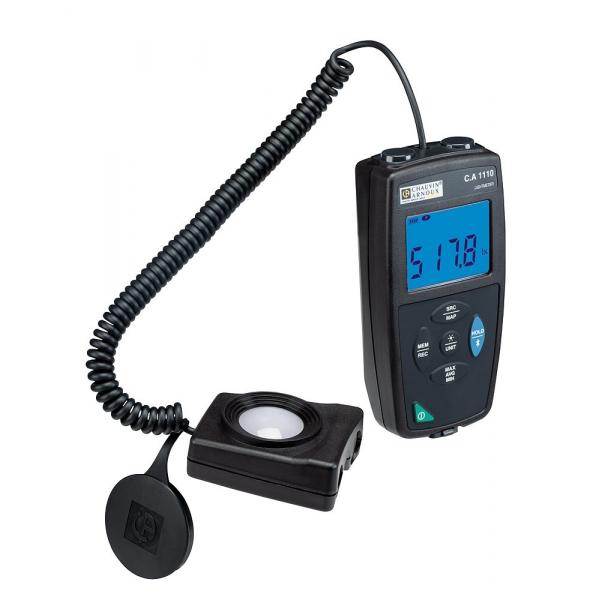

Because it is magnetic, the sensor can be fixed to the product for one-handed use or for easy transport, but it is also possible to use it remotely to avoid shading by the operator.
The CA 1110 also offers Min, Max, Average and Hold functions, as well as allowing spot or programmable recording.
The Data Logger Transfer software is available for free download to view the recorded data, configure the C.A 1110, benefit from remote display and generate automatic reports.


Autonomy: 500 hours / 3 years of recording with 15 min acquisition time
Fluo mode: ± 4%L (Type F11, 4.000K)
Fluorescent lamp: ± 9%L
Incandescent lamp: ± 3%L
LED mode: ± 4%L (4.000K)
LEDs: ± 6%L (3.000 K and 6.000 K)
MAP mode: lighting mapping on a surface or in a room. The measurements are saved in only 1 file.
Measuring range: from 0,1 to 200.000 lux from 0,01 to 18.580 fc
Power supply: 1,5V or rechargeable NiMH batteries, direct connection to the mains via micro USB adapter (optional)
Recording: manual or programmed
