An exceptional autonomy of 13 hours.
Rapidity: start-up takes place in 3 seconds.
Emissivity table expandable as desired.
Ability to rename images and thermograms based on site.
Registration and storage of configurations according to applications (building, electrical cabinet, etc.).
Voice recording to record real-time notes and comments on the image.
Connection to current clamps and multimeters: all necessary measurements simultaneously.

Conceived and developed to be easy to use, it adapts to all applications in the fields of building analysis, electrical and mechanical maintenance aimed at:
- Energy audits
- Search for defects: thermal bridges, infiltrations, presence of humidity
- Electrical maintenance: detection of faulty contacts, imbalances, etc.
- Mechanical interventions: detection of wear points, engine overheating, lubrication problems, etc.

Its design has been studied for a simplified use:
- Its handling allows direct access to the controls with one hand

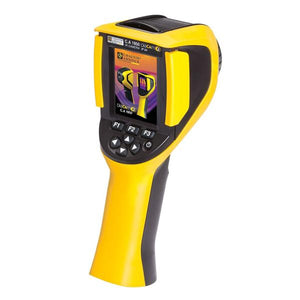

- Balanced: The CA 1950 does not move even when placed upright on a table
- Viewing is made possible by the large 2.8-inch display with automatic brightness adjustment
- The 20°x20° field of view uses focus free technology to get sharp images regardless of distance
- Contextual help helps the user to minimize the risk of error
- The CA 1950 allows you to record the voice commentary directly on the image.
- The protective flap of the lens is integrated in the device, without the risk of losing it
The CA 1950 thermal imaging camera can simultaneously read via Bluetooth the measurements (current, etc.) made with current clamps and multimeters.

The software
CAmReport, the thermogram analysis software, allows ultra-precise analysis by means of multiple tools:
- Cursors (automatic display of the temperature at the selected point)
- Thermal profile (automatic display of Min/Max/Average temperatures of the line)
- Square or circle for an analysis by area
- Results tables automatically and quickly display all thermogram information and analysis tools
- Polygons and polylines allow you to analyze specific areas of the thermogram more accurately
- The standard emissivity table can be expanded by the user
CAmReport also allows the automatic creation of reports according to the different models available. Reports are exportable in Word or PDF format for ease of reporting
editing and archiving.

Other characteristics:
- 80 x 80 detector type UFPA microbolometer, 8 ~14 um
- IFOV (spatial resolution) 4.4 mrad
- Temperature range: -20°C to 250°C
- Display modes: thermal image, real image with automatic parallax compensation. Image fusion available via PC software
- Measurement tools: 1 manual cursor + 1 automatic cursor + min/max on adjustable area + temperature profile + isotherm
- Adjustable parameters: emissivity, ambient temperature, distance, relative humidity
- Memory on 2 Gb micro SD card (about 4000 images)
Expandable up to 32GB
- IP 54 protection
- Weight/dimensions 700 g with batteries / 225 x 125 x 83


Standard: IP54
