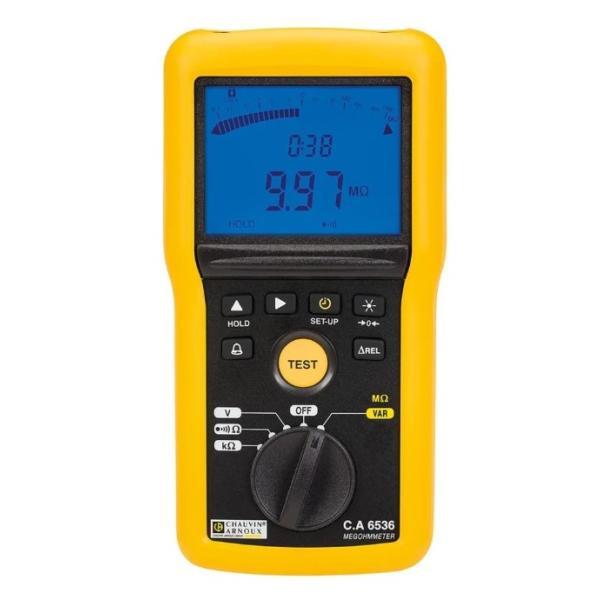

Insulation and Continuity Monitor - "Special Applications"
20G ohms
Test voltage: 10 to 100V in 1V increments
Manual mode / Lock / duration
Alarms, REL
Continuity, Voltage, Resistance
Magnetic fixing
Description

Ergonomics:
Compact and light in size, the new C.A 652x & C.A 653x insulation monitors are user-friendly and offer greater comfort to the user:
- Box designed in accordance with a safety category of 600V - CAT IV and a protection index IP54/IK04, for easy gripping in maximum safety with easy access to the TEST button, even when the user is wearing insulating gloves.
- Magnetic support to fix the instrument on a metal surface, thus leaving the user free of his movements while taking measurements and reading the result.
- Large backlit display with double digital display and logarithmic bargraph, secondary display which shows in real time, in addition to the measured value, the real test voltage, the test current and the timer value.
- Remote control with light spot, for perfect identification of the measurement points even in poorly lit environments.

Insulation check:
This new range features numerous insulation test voltages ranging from 10V to 1kV. The insulation measurement dynamic goes up to 200G ohm, with a compliance with the IEC61557 standard up to 2G ohm.
In addition to the manual mode, new insulation test modes are proposed such as the locking mode (Lock), with programmed duration (Timer) as well as the calculation of the PI & DAR ratios.

Continuity check:
The continuity check function, compliant with the IEC61557 standard (200mA current), is enhanced, on certain models, with a 20mA test current, which has the advantage, during standard use, of saving batteries. This function is equipped with an active protection in case of voltage presence: fuses are not necessary.

Size adaptability:
On most of the models in the C.A 652X & C.A 653x range, it is possible to activate an alarm threshold to be chosen for each measurement, between 2 fixed thresholds and 1 customizable threshold.
Furthermore, the REL function allows you to view the measurements in variation with respect to a reference measurement. The display takes place in value of the variation and in percentage with respect to the reference.

Other features:
There are DMM functions with measurement of voltage up to 700V, frequency up to 800Hz, resistance up to 999k ohm and capacitance up to 10uF.

Ease of operation:
Measurement analysis is facilitated by memorizing 300 measurements on the instrument. The memory capacity is increased to 1300 locations for the versions with Bluetooth® communication.
The Megohmmeter Transfer (MEG) software module, supplied as standard with the communicating versions, allows the remote launch of a test with real-time graphic display, and the transfer of the memorized measurements to a PC.
The values are then displayed for each type of measurement.
The DataView® software package (optional) generates customized measurement reports which can include site and operator coordinates.

Technical features:
ISOLATION: variable test voltage from 10 to 100V with 1V step
Measurement range: 20G ohms
Test modes: Manual, lock and timer,
Continuity: measurement current 200mA/20mA
Voltage measurement: 700V
Resistance measurement: 0-1000k ohm
Double display + logarithmic bargraph
Magnetic fixings
Alarms
Power supply: 6 x LR6/AA batteries
Dimensions: 211 x 108 x 60mm
Weight: 850g
IP54, Safety category: 600V - CAT IV


Weight (g): 850
