Highlights:
Graphical display of trends with multiple parameters and waveform up to 600 Hz
Multiple analytical tools: time/date-stamped Min/Max/Avg and Peak monitoring, filtering, duty cycle
Optimized ergonomics: IP67 watertight casing, safety measurement terminals as per IEC61010 1000V CAT III/600V CAT IV, power supply via USB charger
Top-of-the-range specifications: 100 kcts, 200 kHz bandwidth and 0.02% accuracy
Communication: USB, BT and ANDROID application via the SX-DMM software delivered, SCPI programming commands

Description:

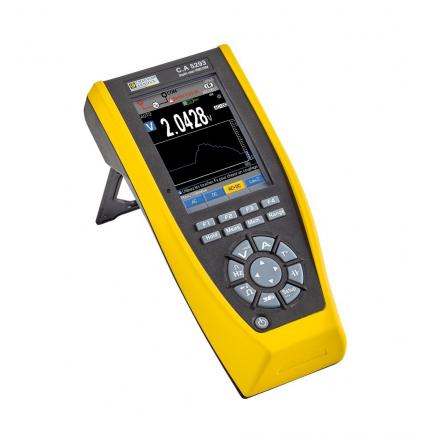

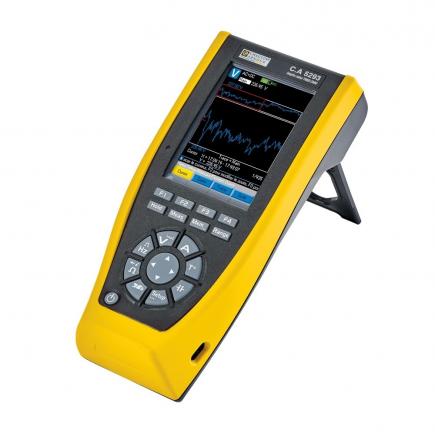

The ASYC IV portable multimeters with graphical colour display can be used for direct measurement of the main electrical quantities and instantaneous viewing of the trends and waveform.
These multimeters are compact, rugged, watertight and specially designed for easy handling.
With multiple quantities measured around the main function, as well as functions for specification, relative measurement, mathematical functions and direct current measurement using a clamp make these multimeters genuine measurement experts.

High-performance graphical multimeters...
Easy-to-read 320 x 240-pixel colour matrice screen with black background
Multi-parameter graphical display of the trends on a summary screen
Display of the waveform at 50 / 60 and 600 Hz
Trace, cursors and zoom on the recordings
Internal recording of 30 sequences

Dynamic recorders...
Up to 30,000 measurements stored in memory
Simplified parameterization of the number of measurements, the interval, the duration and the storage capacity
Internal storage of 30 measurement sequences
Interactive zoom function on the recordings
A simple monitoring mode displaying the time/date-stamped MIN/MAX/PEAK+/PEAK- and AVG values
