Description:

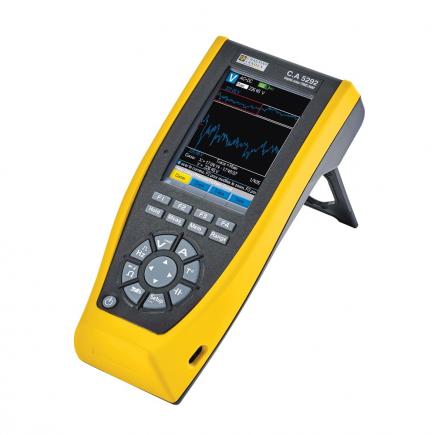

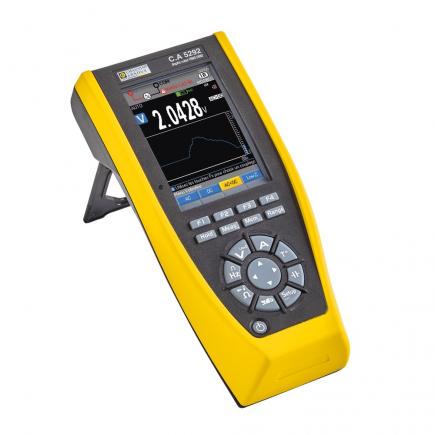

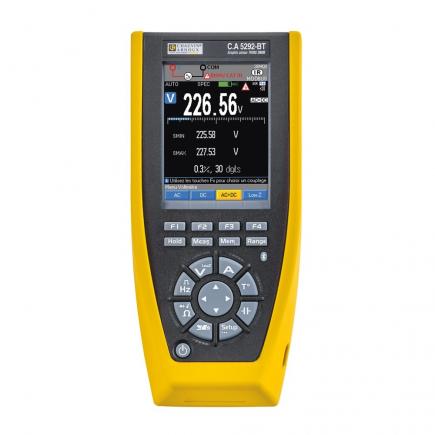

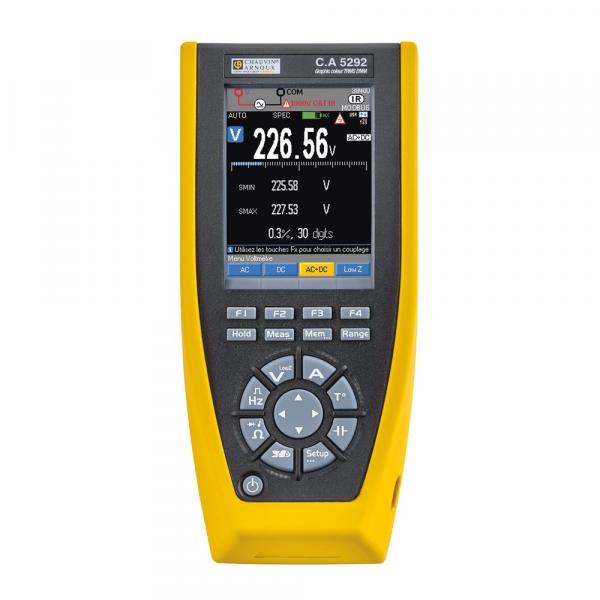

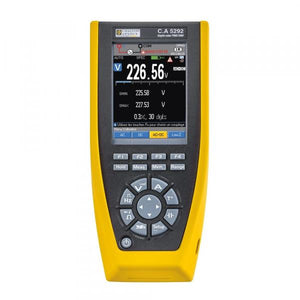

The ASYC IV portable multimeters with graphical colour display can be used for direct measurement of the main electrical quantities and instantaneous viewing of the trends and waveform.
These multimeters are compact, rugged, watertight and specially designed for easy handling.
With multiple quantities measured around the main function, as well as functions for specification, relative measurement, mathematical functions and direct current measurement using a clamp make these multimeters genuine measurement experts.

High-performance graphical multimeters...
Easy-to-read 320 x 240-pixel colour matrice screen with black background
Multi-parameter graphical display of the trends on a summary screen
Display of the waveform at 50 / 60 and 600 Hz
Trace, cursors and zoom on the recordings
Internal recording of 10 sequences

Dynamic recorders...
Up to 10,000 measurements stored in memory
Simplified parameterization of the number of measurements, the interval, the duration and the storage capacity
Internal storage of 10 measurement sequences
Interactive zoom function on the recordings
A simple monitoring mode displaying the time/date-stamped MIN/MAX/PEAK+/PEAK- and AVG values

... And much more!
Contextual reminder of connections
Traditional USB communication with Bluetooth available as an option
IP67 protection, withstands water projections and dust, ideal for outdoor conditions
Commercially-available Ni-MH AA rechargeable battery, the best quality/price trade-off
Battery life of up to 100 hrs on battery with management of battery level
No time wasted: the instrument operates while charging


AC and AC+DC bandwidth: 100 kHz
Accuracy AC and AC+DC: 0,3%
Basic accuracy AC and AC+DC: 0,3%
Communication: USB / optical or via Bluetooth (optional) - "SX-DMM" software (supplied)
DC current accuracy: 0,08%
DC voltage accuracy: 0,03%
DC, AC and AC + DC voltages: 100 mV * / 1000 mV / 10V / 100V / 1000V
DC, AC, AC+DC current: 1000 μA / 10 mA / 100 mA / 1000 mA / 10 A | 10 A / 20 A (30 s max)
Degree of protection: IP67
Electrical safety / EMC: EN61010-1, 1000V CAT. III - EN61010-2-033, 1000V CAT. III and 600V CAT. IV / EN61326-1
Graphic color display: (70 x 52 mm) 320 x 240 pixels backlit, black background on 4 levels 100.000 pt
Memory: 10.000 measurements
Power supply: mains charger or 4 Ni-MH 2400 mAh - 1.5V rechargeable batteries
Resolution: 1 μV / 10 μV / 0,1 mV / 1 mV / 10 mV
VlowZ: 500 kΩ
