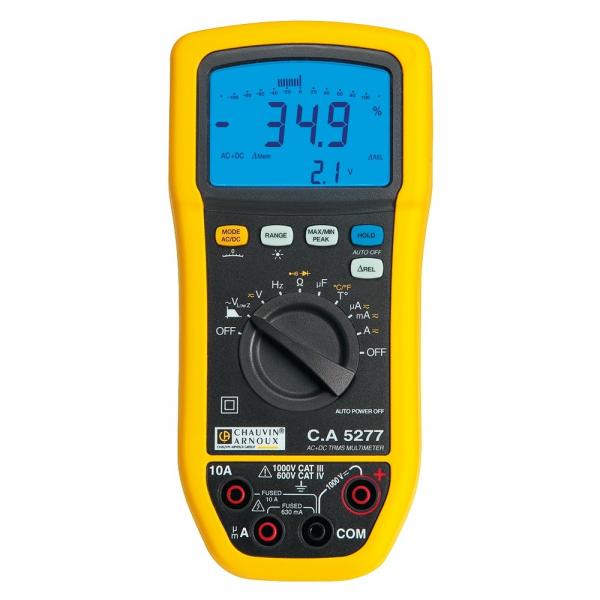

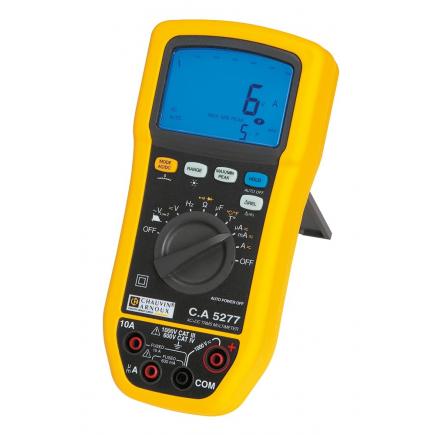

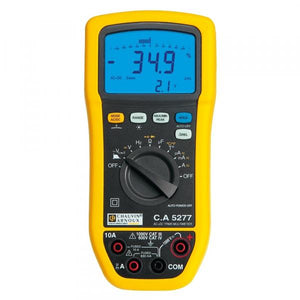

CHAUVIN ARNOUX P01196777 - C.A 5277 Digital multimeter

The comprehensive C.A 5277 multimeter is equipped with all the functions needed for testing, maintenance and inspections
With its high-speed 12-bit converter, the C.A 5277 performs 5 TRMS AC+DC measurements per second with high accuracy whatever the form or type of the signal.
TRMS AC+DC measurement of voltage and current


AC + DC voltage: 60 mV / 600 mV / 6V / 60V / 600V / 1000V
AC current: 6000 μA / 60 mA / 600 mA / 6A / 10A (20A / 30 s)
AC voltage: 60 mV / 600 mV / 6V / 60V / 600V / 1000V
Accuracy / Resolution: 0,09% + 2 pt / from 0,01 mV to 1V
Automatic AC/DC detection: Yes
Bandwidth: from 40 Hz to 10 kHz
DC current: 6000 μA / 60 mA / 600 mA / 6A / 10A (20A / 30 s)
DC voltage: 60 mV / 600 mV / 6V / 60V / 600V / 1000V
Display + 61 segment bargraph: Double display 6000 counts backlit
LowZ AC voltage: 600 mV / 6V / 60V / 600V / 1000V
Resolution: from 0,01 mV to 1V
Sampling: 5 measures/s
Type of measurement: TRMS AC/DC / AC+DC
