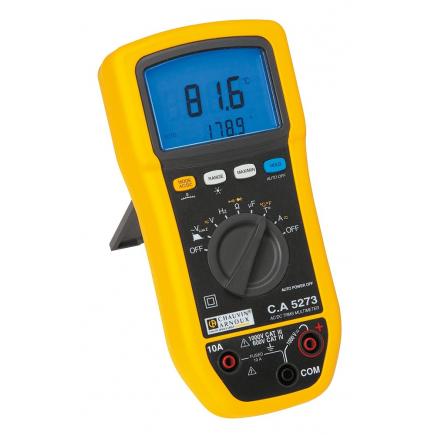

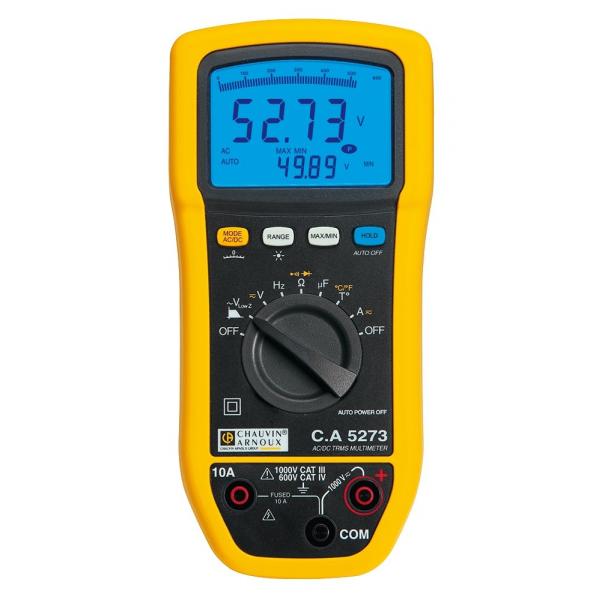

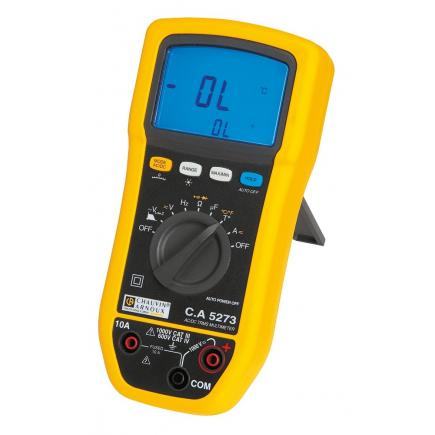

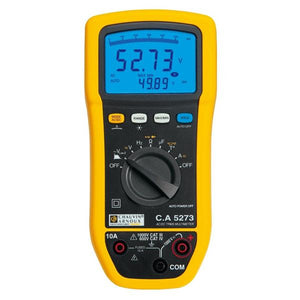

CHAUVIN ARNOUX P01196773 - C.A 5273 Digital multimeter

The C.A 5273 is a comprehensive multimeter for electrical maintenance of installations and small AC and DC machines, with a double 6,000-count backlit display and a 61+2-segment bargraph with remanent effect.
Its 600V CAT IV safety is backed by IP54 ingress protection.
Designed and manufactured in France by CHAUVIN ARNOUX, thismultimeter comes with a 3-year warranty.


AC current: 6A / 10A
AC voltage: 600 mV / 6V / 60V / 600V / 1000V
Accuracy / Resolution: 0,2% + 2 pt / from 0,1 mV to 1V
Automatic AC/DC detection: Yes
Bandwidth: from 40 Hz to 3 kHz
DC current: 6A / 10A (20A / 30 s)
DC voltage: 600 mV / 6V / 60V / 600V / 1000V
Display + 61 segment bargraph: 6000 counts
LowZ AC voltage: 600 mV / 6V / 60V / 600V / 1000V
Resistence: 600 Ω / 6000 Ω / 60 kΩ / 600 kΩ / 6 MΩ / 60 MΩ
Resolution: from 0,1 mV to 1V
Sampling: 5 measures/s
Type of measurement: TRMS AC/DC
