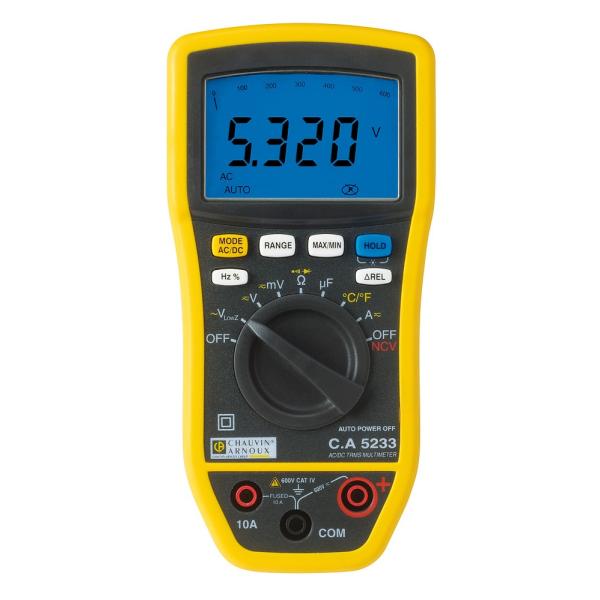

This TRMS AC/DC digital multimeter has been designed to meet the main measurement needs of modern electricians and electrical engineers.
Simple to use, it offers good readability thanks to the 6,000 pt backlit display with bargraph, 2 "OFF" positions, a shockproof sheath.

CAT IV 600V
DC voltage reading range (min.) 0.01 mV
DC voltage reading range (max.) 600 V
VAC reading range (min.) 0.01 mV
Reading range V AC (max.) 600 V
DC amperage reading range (min.) 0.001A
A DC reading range (max.) 10 A
A AC reading range (min.) 0.001A
AC amperage reading range (max.) 10A
Reading range - resistance 0.1 ohm - 60 Mohm
Reading range - capacitance 0.01 nF - 1000 uF
Frequency reading range 10Hz - 3000Hz
Temperature -20 to 760 °C (thermoelement K)
DC resistance 10 Mohm
AC resistance 10 Mohm
Basic Accuracy 0.2%
Measurement type (details) True RMS
Frequency range 40Hz - 1kHz
Interfaces none
Power supply (details) 9 V battery pack
Height 155mm
Width 75mm
Length 75mm
Weight 320g
Calibrated according to manufacturer standards (no certificate)
Reading category CAT IV 600V, CAT III 600V
AC, DC voltage measurement
AC/DC current reading
Type CA 5233
Digital display
Display (count) 6000
Dimensions (L x W x H) 75 x 75 x 155 mm
Temperature reading range (max.) +760 °C
Temperature reading range (min.) -20 °C
Basic Accuracy +-0.2%


Bandwidth: 3 kHz (V) / 1 kHz (A)
Readout: Backlit 6,000 count + 61-segment bar graph
