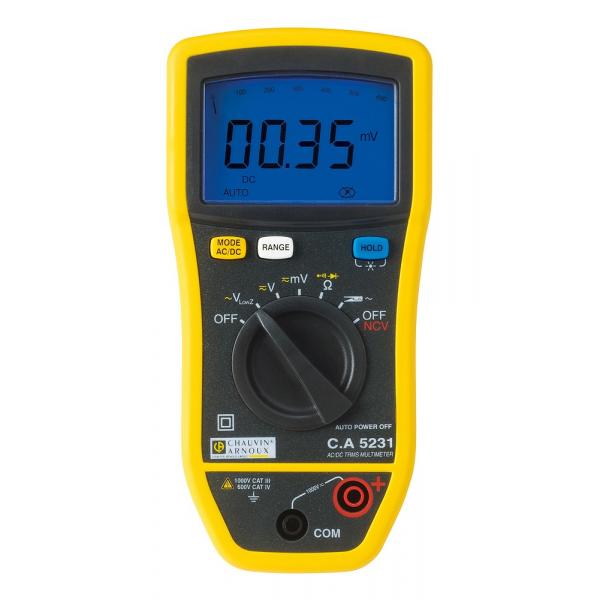

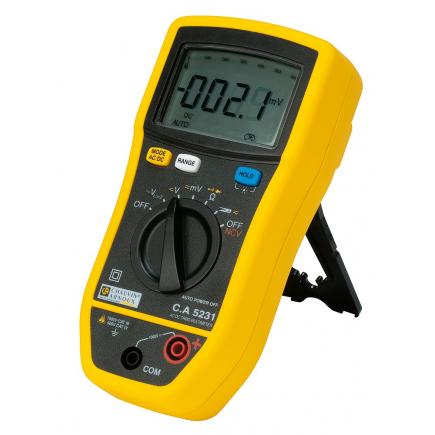

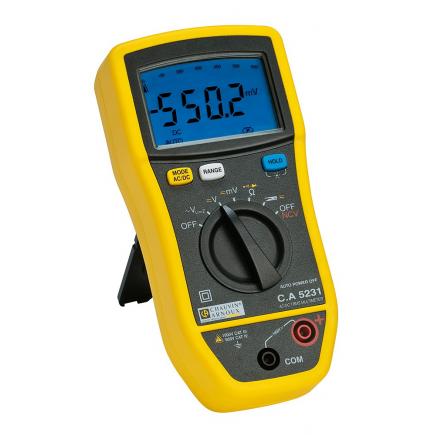

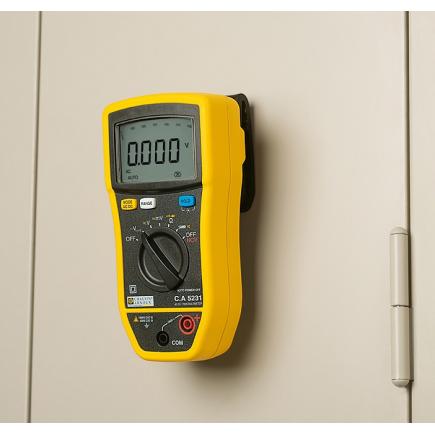

CHAUVIN ARNOUX P01196731 - C.A 5231 Digital multimeter

This compact digital multimeter meets the needs of any self-employed electrician.
It is simple to use and exceptionally easy to read thanks to its 6,000-count backlit display with bargraph.
There are two "Off" positions for greater effectiveness, including one which allows no-contact voltage detection. The screen lights up when near to a live cable.
If it is hooked up to a current clamp, it can measure currents up to 600 A in total safety.


AC voltage (6 ranges): 1000V / Resolution 0,01 mV
AC voltage (Low Z) - (4 ranges): 1000V / Resolution 0,001 mV
AC/DC current: with current clamp: 600 A Resolution: 0,1 A
Bandwidth: 3 kHz (V) / 1 kHz (A)
Continuity / Diode Test: Yes / Yes
DC voltage (6 ranges): 1000V / Resolution 0,01 mV
Functions: HOLD
Protection: IP 54
Readout: 6000 counts backlit + bargraph
Resistence: 6 ranges / 60 MΩ / Resolution 0,1Ω
Safety EN 61010-1: 600 V CAT IV, 1000 V CAT III
Type of measurement: TRMS AC / DC
Typical accuracy: 0,2%
Voltage detector: contactless voltage presence signal
