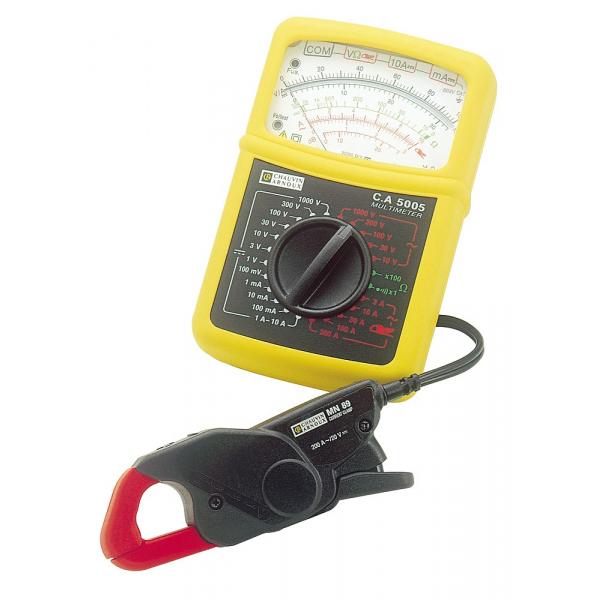

CHAUVIN ARNOUX P01196523F - C.A 5005 Analogue multimeter with MN 89 clamp meter
The C.A 5005 is a very competitively-priced analogue multimeter designed to meet all the needs of electricians.

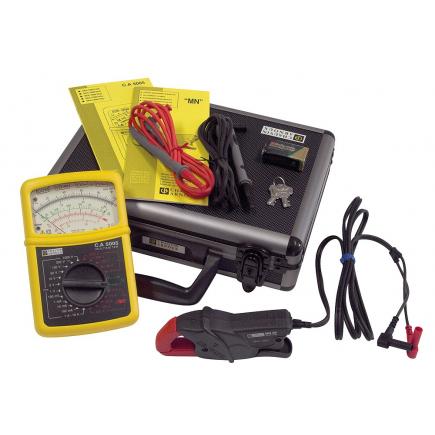

It is delivered with a current clamp allowing measurement (with direct readings) of AC currents up to 200 A AC.
AC current: 5 Ranges: from 3 A to 300 A
AC voltage: 5 Ranges: from 10 V to 1000 V
Accuracy (typical): 1,5 % in VDC - 2,5 % in VAC and AAC - 10 % in Ω
Autonomy: 10 000 10-second measurements
Bandwidth: from 10 Hz to 100 kHz (depending on the range)
Continuity sound test: for R < 50 Ω
dB-Scale in AC voltage: from 0 to 22 dB
DC current: 6 Ranges: from 50 μA to 10 A
DC voltage: 8 Ranges: from 100 mV to 1000 V
Electrical safety: EN 61010-1 - 600 V/Cat III - 300 V/Cat IV
Environmental conditions: from -10°C to +55°C and HR < 90%
Impedance: 20 kΩ / V
Power supply: 9 V Battery
Protection: IP 40, IP 53
Resistence: 2 Ranges: 10 kΩ and 1 MΩ
