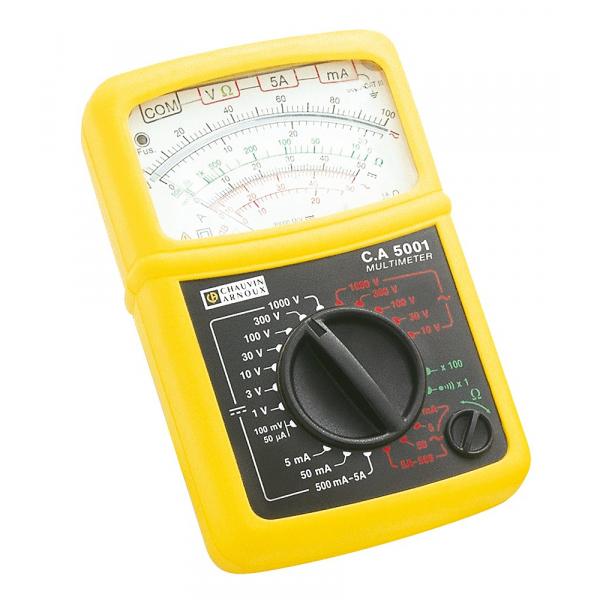

CHAUVIN ARNOUX P01196521E - C.A 5001 Analogue multimeter
The C.A 5001 is a very competitively-priced analogue multimeter designed to meet all the needs of electricians.
AC current: 4 Ranges: from 50 mA to 5 A
AC voltage: 5 Ranges: from 10 V to 1000 V
Accuracy (typical): 1,5 % in VDC - 2,5 % in VAC and AAC - 10 % in Ω
Autonomy: 10 000 15-second measurements
Bandwidth: from 10 Hz to 100 kHz (depending on the range)
Continuity sound test: for R < 50 Ω
dB-Scale in AC voltage: from 0 to 22 dB
DC current: 5 Ranges: from 50 μA to 5 A
DC voltage: 8 Ranges: from 100 mV to 1000 V
Electrical protection: Fuses 0,5 A and 5 A Fuses 1,6 A and 16 A
Electrical safety: EN 61010-1 - 600 V/Cat III - 300 V/Cat IV
Impedance: 20 kΩ / V
Power supply: 1 1,5 V Battery
Protection: IP 40, IP 53
Resistence: 2 Ranges: 10 kΩ and 1 MΩ
