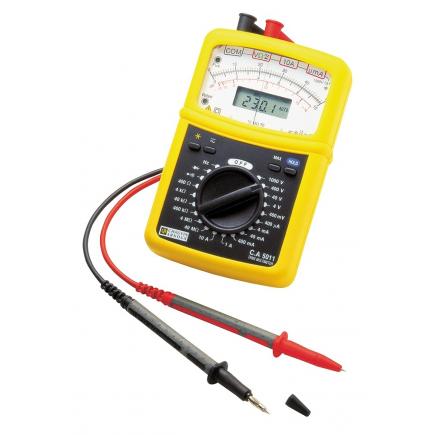

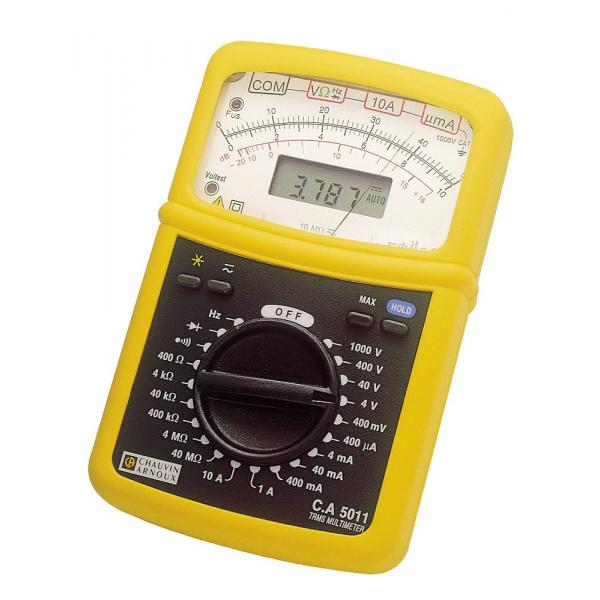

CHAUVIN ARNOUX P01196311E - C.A 5011 Analog/digital multimeter

The C.A 5011TRMS multimeter gives the RMS value whatever the type of signal (sinusoidal or distorted).
This makes it ideal for all types of installations, even those involving "non-linear" loads..


AC current: 2x6 Ranges: from 400μA to 10A
AC voltage: 2x5 Ranges: from 400 mV to 1000 V
Accuracy (typical): -1,5% in V and 1% in A e Ω
Autonomy: 300 hours
Bandwidth: from 20 Hz to 10 kHz
Continuity sound test: for R < 400 Ω
dB-Scale in V: from -20 to +16 dB
DC current: 2x6 Ranges: from 400μA to 10A
DC voltage: 2x5 Ranges: from 400 mV to 1000 V
Electrical protection: Fuses 1 A and 10 A
Electrical safety: EN 61010-1 1000V CAT. III, 600V CAT. IV
Environmental conditions: from -10°C to +55°C and HR < 90%
Impedance: 10 MΩ
Power supply: 1 9V battery
Protection: IP 53
Readout: 4000 counts with backlight
Resistence: 6 Ranges: from 400 Ω to 40 MΩ
