Built-in comprehensive self-test.
Voltage test up to 690 VAC (16 2/3 Hz - 800 Hz) / 750 VDC.
Unipolar phase test.
Phase order control up to 400Hz.
Continuity test.
Contact tip and removable leads.
Description.

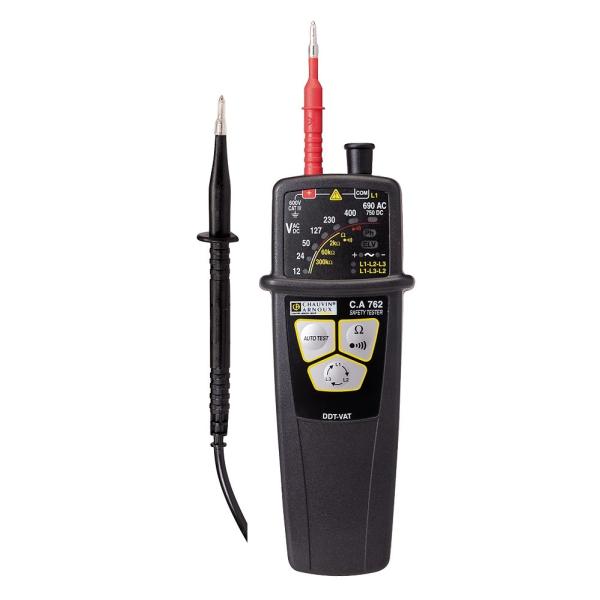

The CA 762 is a voltage tester useful for electricians to carry out the Voltage Absence Verification (VAT) in compliance with the EN 61423-3 Edition 3 standard: it allows you to intervene on any 600V Cat.IV system.
To meet the regulatory provisions of some countries, it is available in two versions: with or without IP2x accessories.
Safety in the event of a power failure via signal LED, which flashes as soon as the voltage is above 50 VAC(45-65Hz) and above 150V DC(16-450Hz).
Complete integrated self-test, for checking electrical circuits, power supply, displays and the good condition of the measurement leads.
The tips and leads are removable. The self-powered CA 753 measuring accessory (optional) allows quick and complete checking of the 2P+E sockets.

Characteristics:
Cat.IV 600V
IP65
Built-in comprehensive self-test
Voltage detection, LED display from 12V to 690VAC / 750VDC
Automatic identification of the nature of the voltage (AC or DC) and indication of the polarity
Phase search with a single tip
Bipolar phase order control "2-wire method".
Continuity test with sound and visual indication (R< 100 ohm)
Continuity test with visual indication for R< 2 kohm , 60 kohm and 300 kohm
Complies with EN 61243-3, DIN VDE 0682-401 standards
Removable lead and tip


Frequency: DC, 16 2/3 a 800 Hz
Impedance: > 400 k-ohm
Maximum current: 3,5 mA
Polarity indication: Yes
Tension: 12 Vac
