Automatic recognition of AC/DC voltage.
No risk of differential intervention ad. high sensitivity during phase/ground tests.
Phase test with a single measuring tip.
Resistance and continuity test.
Removable measuring tips.

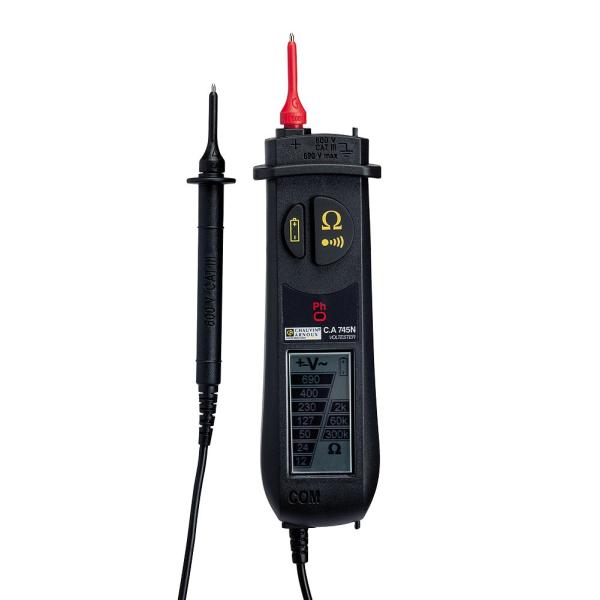

The C.A 745N voltage and continuity tester is equipped with an LCD display to visualize the various thresholds in the form of a bargraph.
Compact, and designed for an easy grip.
The measuring tips are removable and easily replaced.
Therefore it is possible to place them in a compartment integrated in the instrument.
The C.A 745N monitors AC and DC voltage up to 690V, with automatic AC or DC recognition.
Displays the resistance value on 3 thresholds and carries out the sound continuity test.
The C.A 745N allows the unipolar phase test. With the C.A 745N, there is no risk of disconnection of the high sensitivity RCDs during a phase/earth test.
The instrument has an autonomy of 150 hours of operation with alkaline batteries.

Characteristics:
Battery status check
Unipolar phase test
AC and DC voltage control (7 thresholds) with automatic AC or DC recognition
Resistances (3 thresholds) with audible and visual alarm in the presence of voltage
sound continuity
600V CAT III


Acoustic signal: U > 50 V
Impedance: 400 kohm
Polarity test: Symbols "+" and "-"
Protezione in tensione fino aù: 1100 V
Strength test: From 2 kohm to 300 kohm (3 segment bargraph)
Voltage test from: 12 V to 690 V (7 segment bargraph)
