Built-in comprehensive self-test.
Voltage test up to 690 VAC (16 2/3 Hz - 800 Hz) / 750 VDC.
Unipolar phase test.
Phase order control up to 400Hz.
Continuity test.
Contact tip and removable leads.

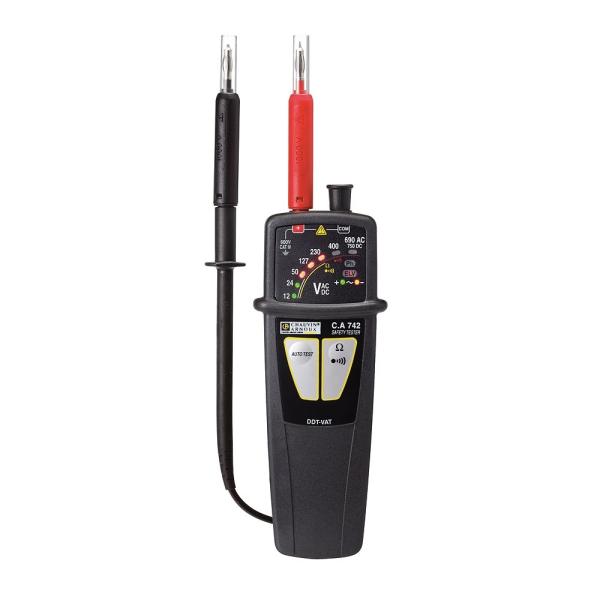

The CA 742 is a voltage detector for electricians and technicians to carry out the voltage absence test (VAT) in compliance with the EN61423-3 Edition 3 standard: it allows you to intervene on any 600 V CAT installation. IV.
To meet the regulatory provisions of some countries, it is available in two versions: with or without IP2x accessories.
Safety in the event of a power failure via signal LED, which flashes as soon as the voltage is higher than 50 VAC (45-65 Hz) and over 150 VDC.
Complete integrated self-test, for checking electrical circuits, power supply, displays and the good condition of the measurement leads.
The tips and leads are removable.
The self-powered CA 753 measuring accessory (optional) allows quick and complete checking of the 2P+E sockets.
Features: CAT IV 600V IP65 Full built-in self-test Voltage detection, LED display 12V to 690VAC and 12V to 750VDC.
Automatic identification of the nature of the voltage (AC or DC) and indication of the polarity Phase search with a single lead.
Complies with EN61243-3, DIN VDE 0682-401 standards.


Frequency: DC, 16 2/3 a 800 Hz
Impedance: > 300 k-ohm
Maximum current: 3,5 mA
Polarity indication: Yes
Tension: 12 Vac
