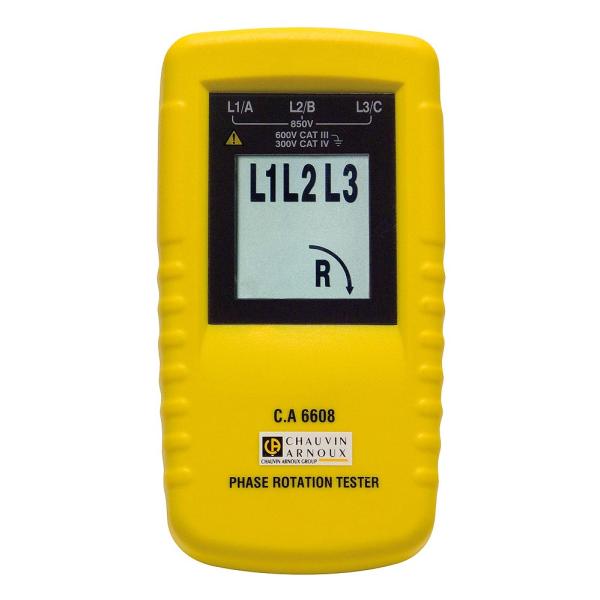

The C.A 6608 has been designed to check the phase order of electrical installations and the direction of rotation of industrial equipment.
The identification of the phases allows for correct and safe wiring of the systems, avoiding damage to the equipment connected to the network.
The phase order is determined with the cables connected and the results are displayed on the LCD+LED display.

Characteristics:
Operating voltage: 40 to 850VAC between phases
Frequency: 15Hz to 400Hz
Power supply: self-powered by the measurement inputs
Complies with EN 61557-7 standard
Electrical safety: EN 61010 600V Cat.III
Dimensions and weight: 130 x 69 x 32 mm - 130 gr.


For use with: L642 and L452 process data loggers
