Markets: small service and residential sectors, electricians to manage consumption, allows for the dissociation of the various charges.
More accurate thanks to the MINI94 current sensor.
Ergonomics: legibility, simplicity, connections, compactness.
Connection without network interruption by clamp.

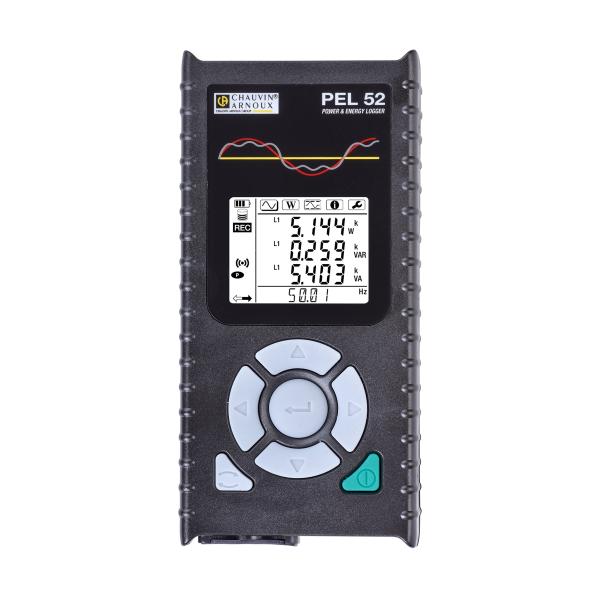

The PEL52 power recorder and energy meter provides electricians with a simple and complete solution for managing consumption in terms of: Saving energy or optimizing the energy efficiency of a building.
Compact, the PEL52 e. Its magnetic body allows it to be placed in small electrical cabinets.
It is not necessary to interrupt the power to put it into service. It also feeds itself through the phase, which allows for long-lasting campaigns.
The backlit multi-view LCD screen offers excellent readability.
The PEL52 has 2 channels which makes it possible to intervene on two-phase or 2 single-phase systems.
The PEL52 performs the following measurements: TRMS voltage and current measurement, W, VA and var (N, Q1 and D) power measurement, PF, DPF, CF and THD measurement.
The PEL52 has multiple communication modes to check or save the measurement results in real time: Wifi communication, onboard WebServer, PEL Transfer® software to save data, view in real time and analyze.
THE PLUS of the software: integrated loss breakdown software & energy converted directly into costs, with a configurable monetary value.


Power measurement: W (P, Pf), VA and var (N, Q1 and D)
