Markets: small commercial and residential electricians to manage consumption allows you to dissociate the various charges.
More accurate thanks to the MINI94 current sensor
Ergonomics: readability, simplicity, connections, compactness
Connection without network interruption by clamp

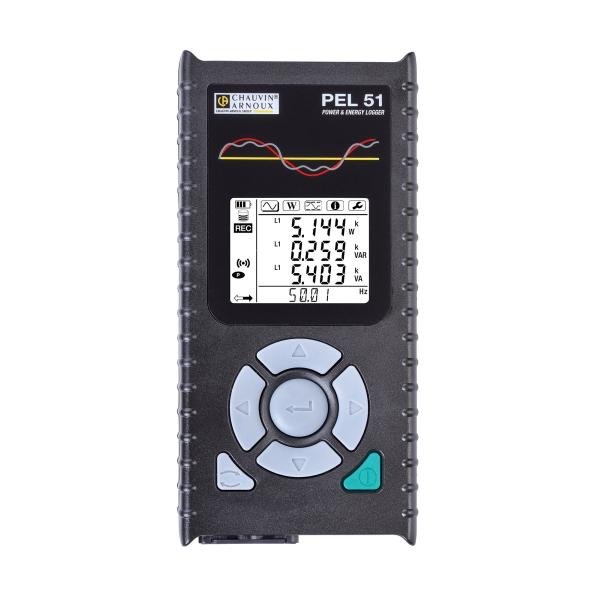

The PEL51 power recorder and energy meter provides electricians with a simple and complete solution for managing consumption in terms of:
-Energy saving or -optimization of the energy efficiency of a building
Compact, the PEL51 e. Its magnetic body allows it to be placed in small electrical cabinets. It is not necessary to interrupt the power to put it into service. It also feeds itself through the phase, which allows for long-lasting campaigns.
The backlit multi-view LCD screen offers excellent readability. The PEL51 has a single-phase channel and performs the following measurements:

TRMS voltage and current measurement
Power measurement W (P, Pf), VA and var (N, Q1 and D)
Measurement of PF, DPF, CF and THD
All data is recorded on an SD card.
The PEL51 has multiple communication modes for real-time monitoring or saving of measurement results:

Wi-Fi communication
Embarked WebServer
PEL Transfer® software to save data, view in real time and analyze.


Power measurement: W (P, Pf), VA and var (N, Q1 and D)


CHAUVIN ARNOUX P01157166 - PEL51 - Voltage Logger: A Detailed Overview
The CHAUVIN ARNOUX P01157166 - PEL51 - Voltage Logger provides a sophisticated solution for efficient energy management. Designed for professionals across various sectors, particularly electricians, this device offers accurate monitoring of electrical consumption. Its innovative features and user-friendly design make it an essential tool for enhancing energy efficiency and improving performance in both commercial and residential environments.
