Possibility of recordings covering several months.
Breakdown of energy losses.
Installation without cutting off the mains supply.
Android application with motor diagnostics.

Description:

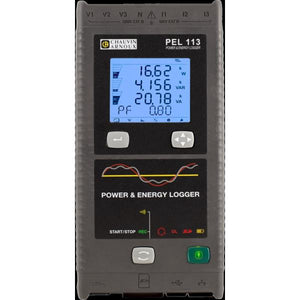

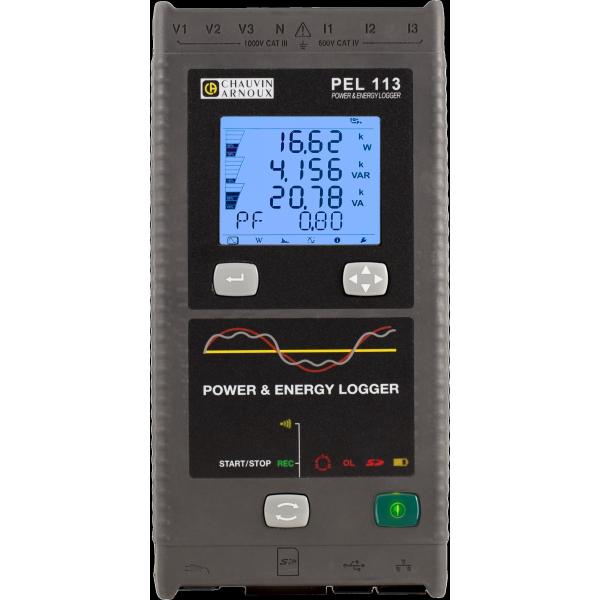

The PEL 113 measures and records all the power and energy values.
It can be used wherever there is electricity:
Electricity generator: renewable energies, thermal energy, etc.
Industries: metallurgy, glassmaking, agri-food.
Residential buildings, tertiary, etc.
Infrastructure and transport.
Datacenters, etc.

Applications:
Energy audits.
Electrical diagnostics.
Industrial maintenance.

Simple, effective ergonomics:
Compact and magnetized.
3 voltage inputs and 3 current inputs.
Quadruple backlit digital display.
Self-powered via the phase.

RMS and DC measurements:
AC and/or DC voltages up to 1,000 V.
Currents up to 10 kA AC or 5 kA DC (depending on the current sensor).
Active, reactive and apparent power values.
Active, reactive and apparent energy values.
Fundamental and balanced active power values and unbalanced active power values.
Measurements and characterization on motors (via Android application).

Functions:
Breakdown of energy losses.
Phase information: cos φ, tan Φ, power factor (PF).
Crest factor.
THD calculation for currents and voltages.
DC, 50 Hz, 60 Hz and 400 Hz (Naval, etc.) measurements.

PEL Transfer software:
With the PEL Transfer software you can:
Set up your PEL.
Check the connections before recording begins.
Download the measurements recorded in the PEL.
View the results of the various measurements and analyses.

Additional advantage: PEL Transfer converts your electricity consumption into the local currency (€, £, $, etc. - 8 tariff ranges).

Communication and networks:
The PEL 110 models offer multiple communication modes:
USB , the simplest link when not working remotely.
Ethernet RJ45 or Wifi (server): connect your PEL11x to the server to communicate from any workstation in the network equipped with the PEL Transfer software.
Wifi (Access Point):
Create a direct link between the PEL11x and your computer.
The Access Point (AP) mode supports up to 5 clients.


Model: PEL113
