Automatic stabilization of the measurement
Battery life > 2,000 x 3P earth measurements

Description:

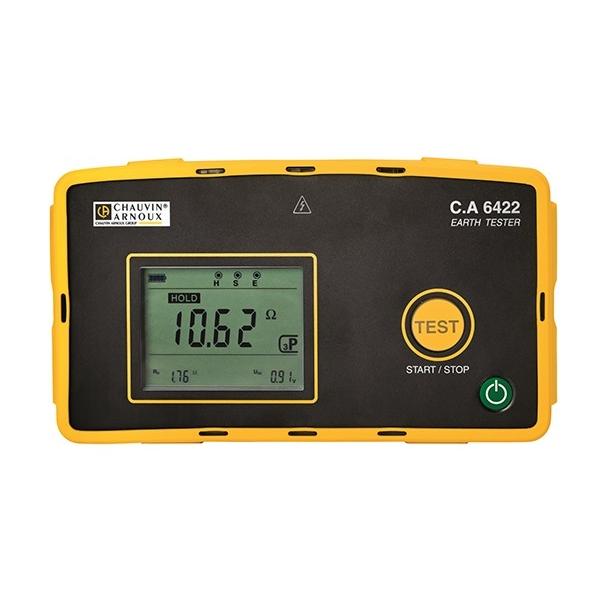

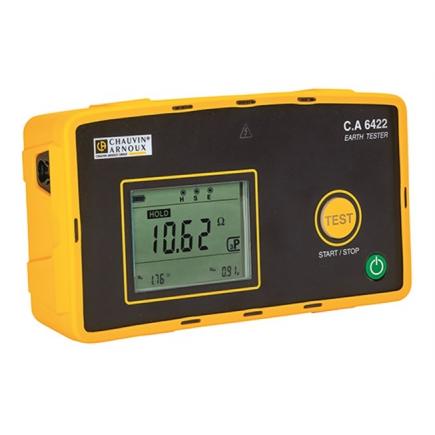

Rugged and waterproof, the CA 6422 earth tester is ideal for intensive use in the field.
This tester can be used for 2P and 3P earth measurements.
The connections are clearly identified with text markings and colour coding.
All the measurements and functions are directly accessible on the instrument's front panel, even when you are wearing gloves.
The CA 6422 is equipped with a backlit LCD screen which is particularly easy to read.
A LED indicates when a hazardous voltage is present, while the NOISE symbol flashes to indicate when a noise voltage is present.

Technical specifications:
Measurement mode: one-shot or permanent
Power supply: 6 x LR6 or AA batteries
Compliant with IEC 61557-1 and IEC 61557-4


2P resistance: from 0,05Ω to 50kΩ
3P earth: from 0,5Ω to 2kΩ
