Tester for all types of earth measurements, including pylon earth measurements (with the C.A 6474) - soil resistivity - earth coupling - ground potential - continuity & resistance

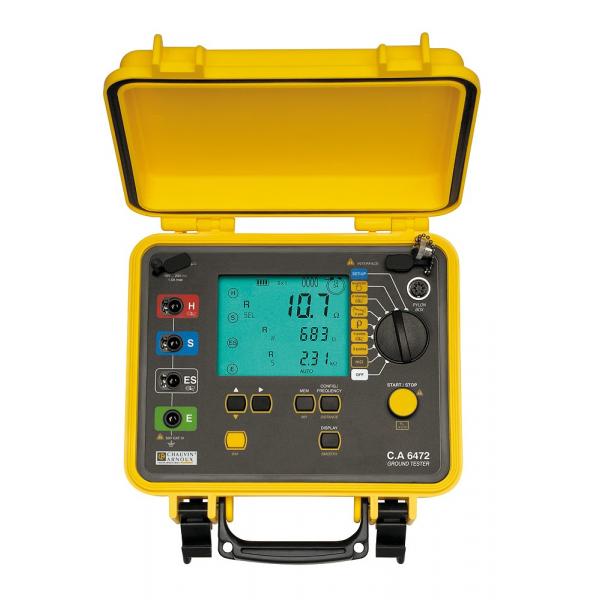

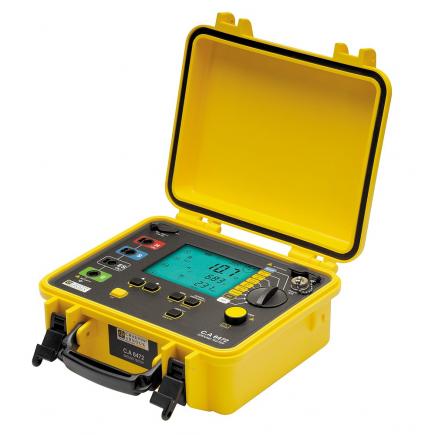

The C.A 6472 can be used for quick, comprehensive surveys of all earthing configurations, offering all the necessary earth measurement functions in a single instrument.
When used with the C.A 6474, it can also perform pylon earth measurements, making it a unique but essential tool for diagnostics and maintenance on pylon networks.
The C.A 6472 offers the possibility of analysing the frequency behaviour of the earth connections thanks to its extensive measurement frequency range (41 to 5,078 Hz).
The use of a high-frequency measurement signal makes it possible to assess the behaviour of an earthing circuit in the presence of lightning.

Functions:
Earth coupling measurement
Soil resistivity measurement: simply program the distances used for the measurement and the tester then calculates r using the Wenner oe Schlumberger methods
Ground potential measurement
Continuity and resistance measurement
Pylon earth measurement with the C.A 6474

Other specifications:
Storage of 512 test results
USB optical link
Ground Tester Transfer PC software to process the stored data
Power supply: NiMh battery with external charger


Electrical Safety / Standards: CAT IV 50 V / EN 61010 / EN 61557-1-4-5
Memory / Communication: 512 measurements / optical / USB
No-load voltage: 3P method: 16 or 32 Vrms 4P method 4P Selective: 16 or 32 Vrms Earth measurement with 2 amp clamps: 16 or 32 Vrms Earth resistivity: 16 or 32 Vrms Potential measurement: 16 or 32 Vrms Resistance measurement ± 16 VDC
Parasitic tension: 3P method: Max 60 Vpp 4P method 4P Selective: Max 60 Vpp Earth measurement with 2 clamps amp .: Max 60 Vpp Earth resistivity: Max 60 Vpp Potential measurement: Max 60 Vpp Resistance measurement Max 60 Vpp
Power supply: NiMH rechargeable batteries
Protection: IP 53
Readout: Multi-level backlit
Typical accuracy: 3P method: ± (2% + 1D) 4P method 4P Selective: ± (2% + 1D) Earth measurement with 2 clamps amp .: ± (10% + 1D) Earth resistivity: ± (2% + 1D) Measure of potential: ± (5% + 1D) Resistance measurement ± (2% + 2D)
